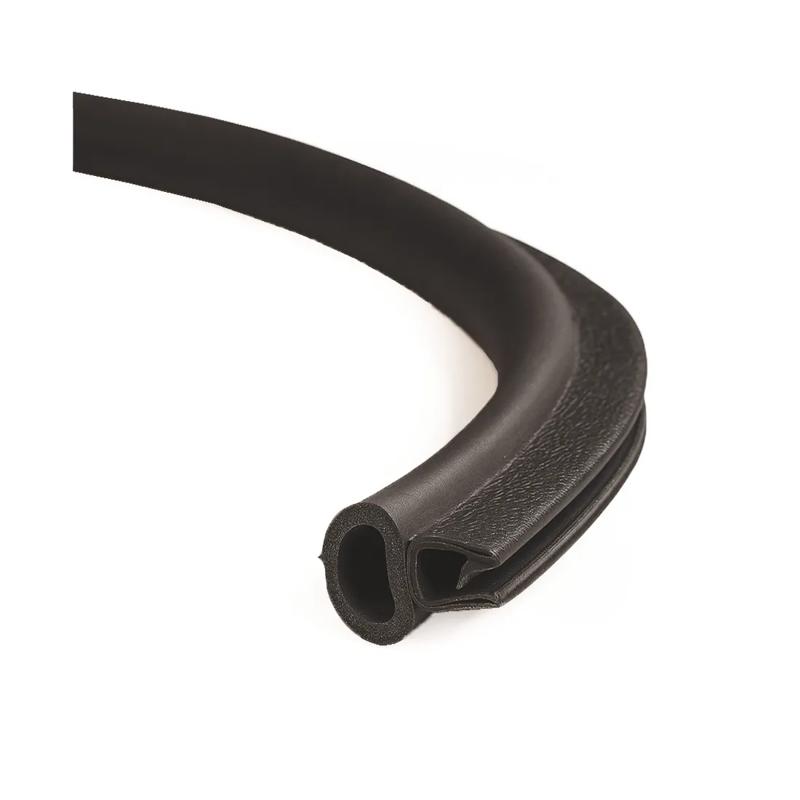

SR3400 - Gaskets - Profile Sealing
Showing 1-10 of 19
Per page:1-10 of 19

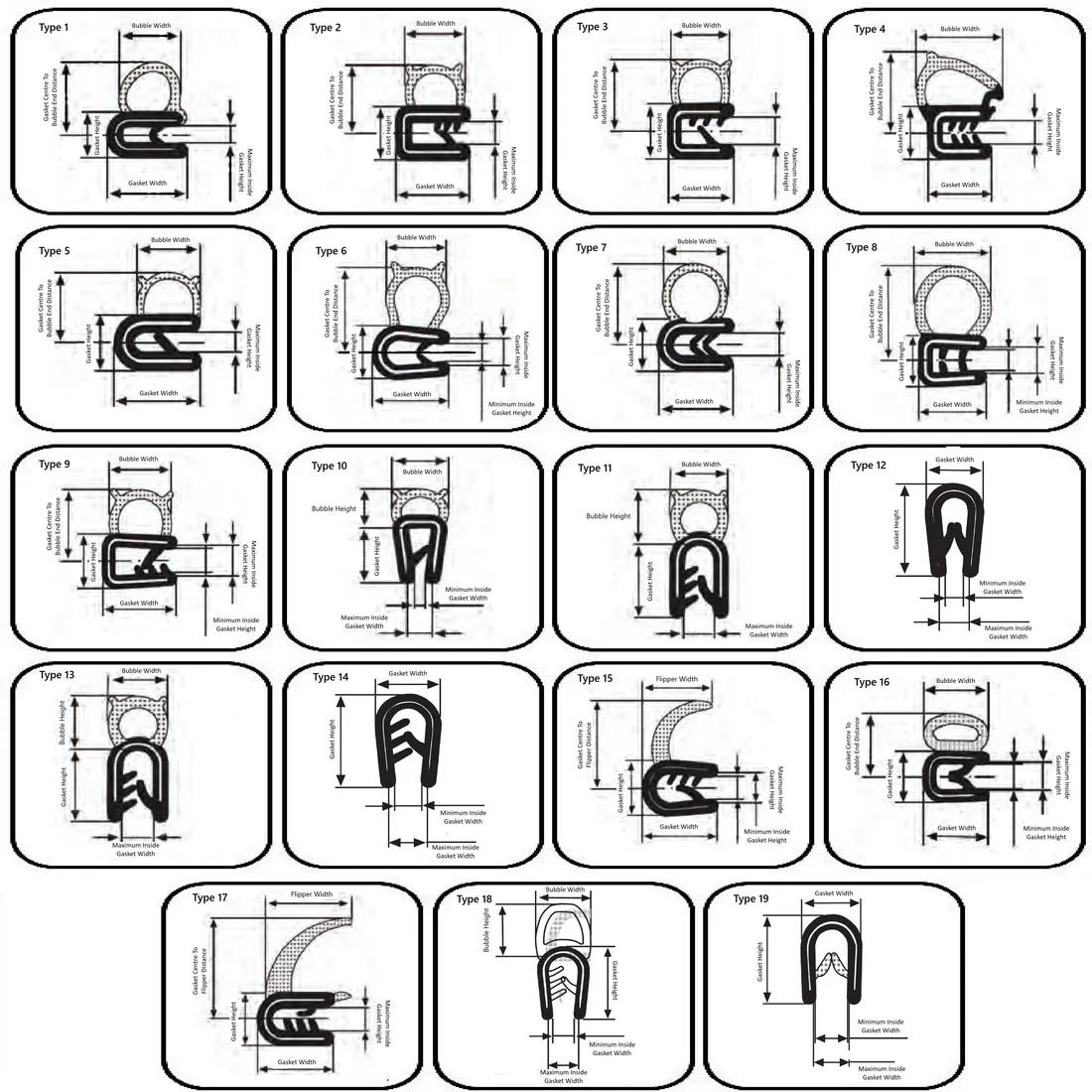

Item Code | Color | Gasket Height | Minimum Grip | Material | Overall Length | Roll Length | Gasket Width | Maximum Inside Gasket Height | Type | Gasket Centre To Bubble End Distance | Bubble Width | Bubble Height | Maximum Inside Gasket Width | Minimum Inside Gasket Width | Minimum Inside Gasket Height | Flipper Width | Gasket Centre To Flipper Distance | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
34009010 | Black | 9.0 mm | 1.5 mm | EPDM | 164.0 ft | 164.0 ft | 11.7 mm | 4.0 mm | Side Bubble | 13.9 mm | 16.1 mm | - | - | - | - | - | - | |
34009107 | Black | 11.3 mm | 1.0 mm | EPDM | 328.0 ft | 328.0 ft | - | - | Side Bubble | - | 11.0 mm | 10.7 mm | 4.6 mm | - | - | - | - | |
34009103 | Black | 9.2 mm | 1.0 mm | EPDM | 328.0 ft | 328.0 ft | - | - | Side Bubble | - | 8.3 mm | 6.5 mm | 3.6 mm | 1.6 mm | - | - | - | |
34009029 | Black | 9.7 mm | 1.5 mm | EPDM | 164.0 ft | 164.0 ft | 12.8 mm | 5.0 mm | Side Bubble | 18.0 mm | 14.5 mm | - | - | - | 4.0 mm | - | - | |
34009522 | Black | 14.0 mm | 1.0 mm | PVC | 492.0 ft | 492.0 ft | 8.0 mm | - | Side Bubble | - | 8.0 mm | - | 4.2 mm | 2.5 mm | - | - | - | |
34009004 | Black | 8.0 mm | 1.0 mm | EPDM | 328.0 ft | 328.0 ft | 11.5 mm | 3.5 mm | Side Bubble | 12.5 mm | 10.0 mm | - | - | - | - | - | - | |
34009701 | Black | 7.7 mm | 1.0 mm | EPDM;PVC | 328.0 ft | 328.0 ft | 10.0 mm | 4.2 mm | Side Bubble | 9.6 mm | 10.0 mm | - | - | - | 3.8 mm | - | - | |
34009202 | Black | 11.2 mm | 2.0 mm | EPDM | 164.0 ft | 164.0 ft | 15.0 mm | 6.0 mm | Side Bubble | - | - | - | - | - | 4.5 mm | 14.0 mm | 17.6 mm | |
34009203 | Black | 10.5 mm | 1.0 mm | EPDM | 164.0 ft | 164.0 ft | 14.8 mm | 4.6 mm | Side Bubble | - | - | - | - | - | - | 17.0 mm | 20.0 mm |
Per page:
1-10 of 19
1–5 of 19 variants
Per page:
34009010
Color
Black
Gasket Height
9.0 mm
Minimum Grip
1.5 mm
Material
EPDM
34009107
Color
Black
Gasket Height
11.3 mm
Minimum Grip
1.0 mm
Material
EPDM
34009103
Color
Black
Gasket Height
9.2 mm
Minimum Grip
1.0 mm
Material
EPDM
34009029
Color
Black
Gasket Height
9.7 mm
Minimum Grip
1.5 mm
Material
EPDM
Per page:
1–5 of 20
