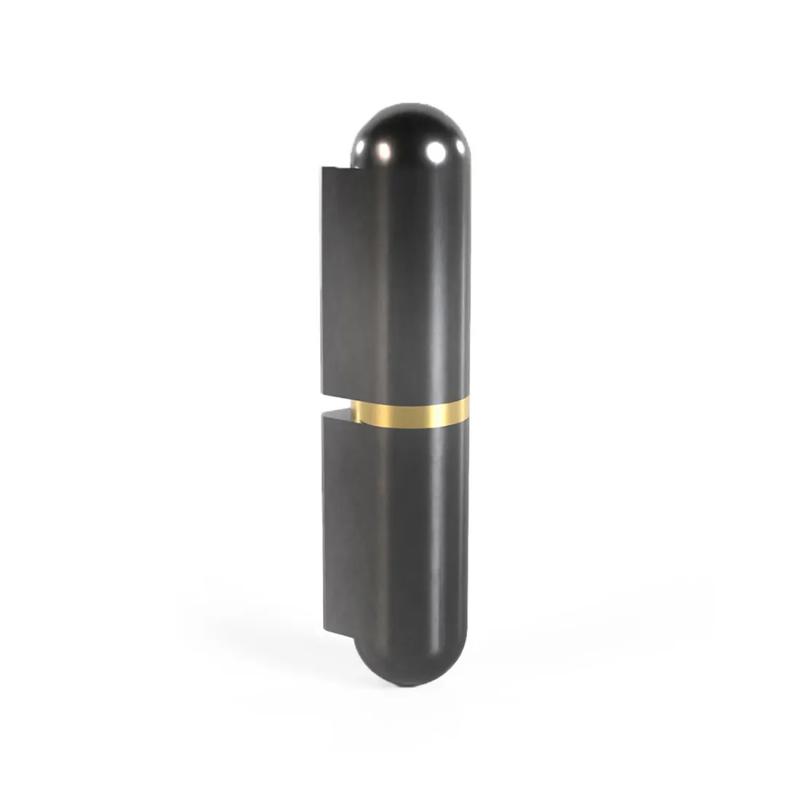

SRHIW - Weld-On Bullet Hinges
Showing 1-10 of 25
Per page:1-10 of 25

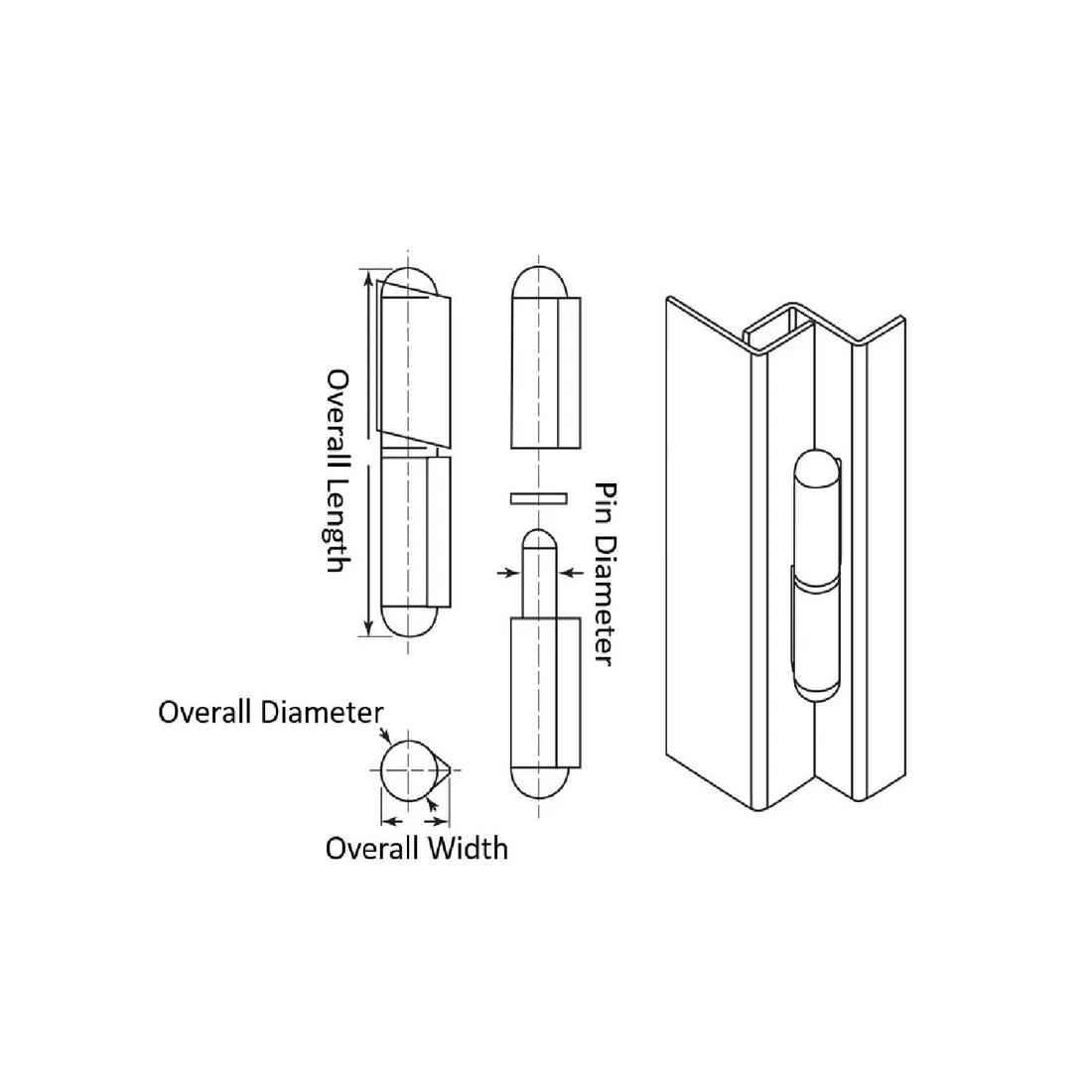

Item Code | Pin Diameter | Overall Width | Overall Length | Pin Material | Washer Material | Body Material | Hinge Type | Material | Overall Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
HIW493A | 0.394 in | 0.787 in | 3.937 in | Steel | Steel | Steel | Weld On Bullet Hinge | Steel | 0.630 in | |
HIW494A | 0.394 in | 0.787 in | 4.724 in | Steel | Steel | Steel | Weld On Bullet Hinge | Steel | 0.630 in | |
HIW489A | 0.197 in | 0.394 in | 1.969 in | Steel | Steel | Steel | Weld On Bullet Hinge | Steel | 0.315 in | |
HIW488A | 0.197 in | 0.394 in | 1.575 in | Steel | Steel | Steel | Weld On Bullet Hinge | Steel | 0.315 in | |
HIW495A | 0.512 in | 0.984 in | 5.906 in | Steel | Steel | Steel | Weld On Bullet Hinge | Steel | 0.787 in | |
HIW490A | 0.236 in | 0.492 in | 2.362 in | Steel | Steel | Steel | Weld On Bullet Hinge | Steel | 0.394 in | |
HIW498A | 0.197 in | 0.394 in | 1.969 in | Brass | Steel | Steel | Weld On Bullet Hinge | Steel | 0.315 in | |
HIW497A | 0.197 in | 0.394 in | 1.575 in | Brass | Steel | Steel | Weld On Bullet Hinge | Steel | 0.315 in | |
HIW496A | 0.512 in | 0.984 in | 7.087 in | Steel | Steel | Steel | Weld On Bullet Hinge | Steel | 0.787 in |
Per page:
1-10 of 25
1–5 of 25 variants
Per page:
HIW493A
Pin Diameter
0.394 in
Overall Width
0.787 in
Overall Length
3.937 in
Pin Material
Steel
HIW494A
Pin Diameter
0.394 in
Overall Width
0.787 in
Overall Length
4.724 in
Pin Material
Steel
HIW489A
Pin Diameter
0.197 in
Overall Width
0.394 in
Overall Length
1.969 in
Pin Material
Steel
HIW488A
Pin Diameter
0.197 in
Overall Width
0.394 in
Overall Length
1.575 in
Pin Material
Steel
Per page:
1–5 of 26
