SR98 - Corner Hinge
Showing 1-2 of 2
Per page:1-2 of 2

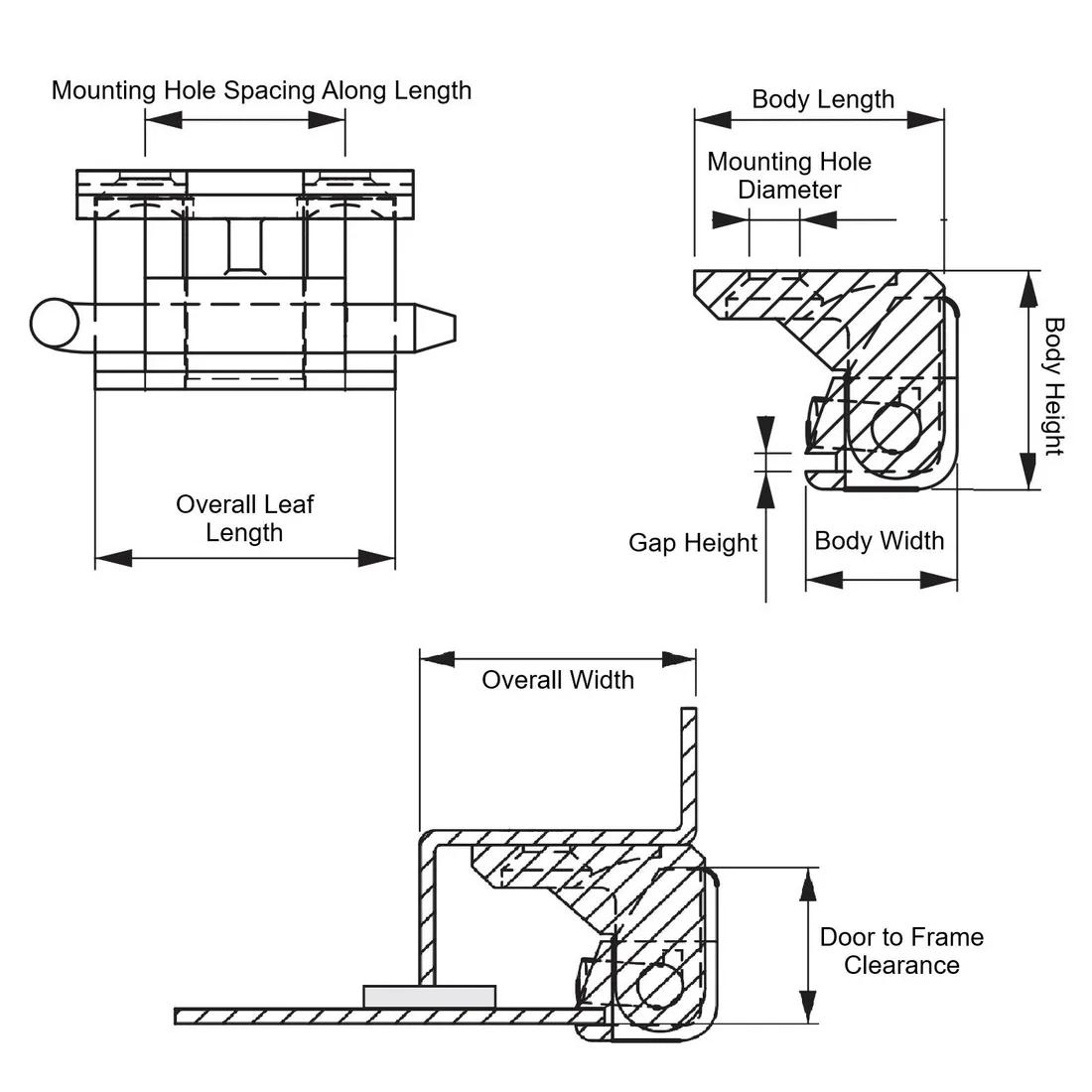

Item Code | Pin Diameter | Pin Length | Mounting Hole Spacing Along Length | Overall Width | Door to Frame Clearance | Maximum Panel Thickness | Mounting Hole Diameter | Body Material | Hinge Type | Maximum Rotation | Mounting Method | Removability | Overall Leaf Length | Finish | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
098112 | 6.0 mm | 53.0 mm | 25.0 mm | 37.0 mm | 22.0 mm | 2.0 mm | 6.3 mm, 6.0 mm | Zinc Alloy | Corner Hinge | 180 ° | Screw, Bolt | Removable Pin | 37.5 mm | Chrome Plated | |
098122 | 6.0 mm | 53.0 mm | 25.0 mm | 37.0 mm | 22.0 mm | 2.0 mm | 6.3 mm, 6.0 mm | Zinc Alloy | Corner Hinge | 180 ° | Screw, Bolt | Removable Pin | 37.5 mm | Black Powder-Coated |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
098112
Pin Diameter
6.0 mm
Pin Length
53.0 mm
Mounting Hole Spacing Along Length
25.0 mm
Overall Width
37.0 mm
098122
Pin Diameter
6.0 mm
Pin Length
53.0 mm
Mounting Hole Spacing Along Length
25.0 mm
Overall Width
37.0 mm
