SR97 - Corner Hinge
Showing 1-6 of 6
Per page:1-6 of 6

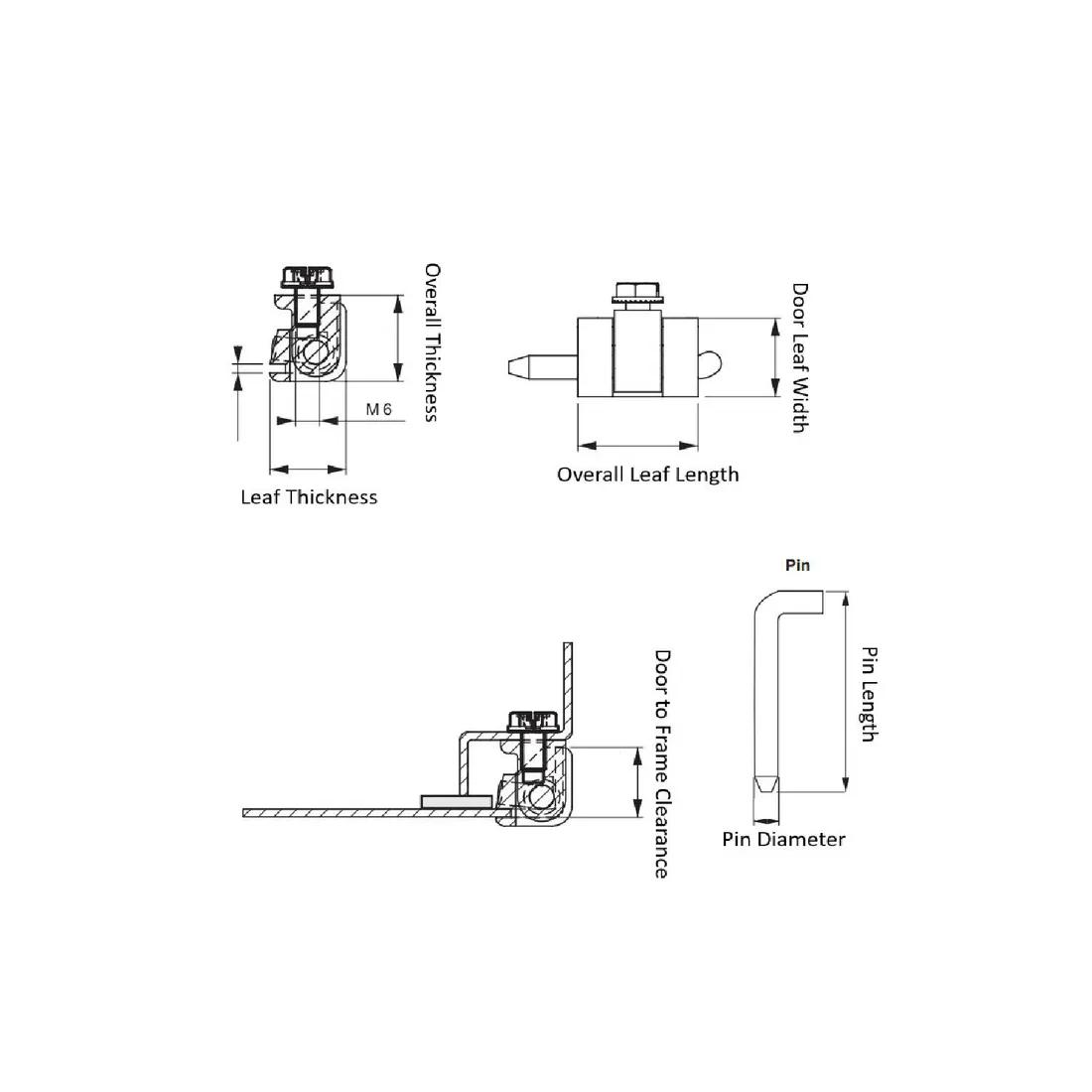

Item Code | Pin Length | Mounting Orientation | Material | Overall Width | Pin Material | Body Material | Leaf Thickness | Hinge Type | Stud Thread Size | Maximum Rotation | Mounting Method | Removability | Color | Pin Diameter | Overall Length | Door Leaf Width | Overall Thickness | Door to Frame Clearance | Body Coating | Maximum Panel Thickness | Overall Leaf Length | Finish | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
09711222 | 53.0 mm | Universal | Zinc Alloy | 19.0 mm | Steel | Zinc Alloy | 19.0 mm | Corner Hinge | M6 | 180 ° | Screw, Bolt | Removable Pin | Chrome | 6.0 mm | 53.0 mm | 20.0 mm | 22.0 mm | 18.0 mm | Chrome-Plated | 2.0 mm | 30.0 mm | Chrome Plated | |
09711215 | 53.0 mm | Universal | Zinc Alloy | 19.0 mm | Steel | Zinc Alloy | 19.0 mm | Corner Hinge | M6 | 180 ° | Screw, Bolt | Removable Pin | Chrome | 6.0 mm | 53.0 mm | 20.0 mm | 22.0 mm | 18.0 mm | Chrome-Plated | 1.2 mm | 30.0 mm | Chrome Plated | |
09712215 | 53.0 mm | Universal | Zinc Alloy | 19.0 mm | Steel | Zinc Alloy | 19.0 mm | Corner Hinge | M6 | 180 ° | Screw, Bolt | Removable Pin | Black | 6.0 mm | 53.0 mm | 20.0 mm | 22.0 mm | 18.0 mm | Powder-Coated | 1.2 mm | 30.0 mm | Black Powder-Coated | |
09740215 | 53.0 mm | Universal | Stainless Steel | 19.0 mm | Steel | Stainless Steel | 19.0 mm | Corner Hinge | M6 | 180 ° | Screw, Bolt | Removable Pin | - | 6.0 mm | 53.0 mm | 20.0 mm | 22.0 mm | 18.0 mm | Electropolished | 1.2 mm | 30.0 mm | Electropolished | |
09740222 | 53.0 mm | Universal | Stainless Steel | 19.0 mm | Steel | Stainless Steel | 19.0 mm | Corner Hinge | M6 | 180 ° | Screw, Bolt | Removable Pin | - | 6.0 mm | 53.0 mm | 20.0 mm | 22.0 mm | 18.0 mm | Electropolished | 2.0 mm | 30.0 mm | Electropolished | |
09712222 | 53.0 mm | Universal | Zinc Alloy | 19.0 mm | Steel | Zinc Alloy | 19.0 mm | Corner Hinge | M6 | 180 ° | Screw, Bolt | Removable Pin | Black | 6.0 mm | 53.0 mm | 20.0 mm | 22.0 mm | 18.0 mm | Powder-Coated | 2.0 mm | 30.0 mm | Black Powder-Coated |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
09711222
Pin Length
53.0 mm
Mounting Orientation
Universal
Material
Zinc Alloy
Overall Width
19.0 mm
09711215
Pin Length
53.0 mm
Mounting Orientation
Universal
Material
Zinc Alloy
Overall Width
19.0 mm
09712215
Pin Length
53.0 mm
Mounting Orientation
Universal
Material
Zinc Alloy
Overall Width
19.0 mm
09740215
Pin Diameter
6.0 mm
Pin Length
53.0 mm
Mounting Orientation
Universal
Material
Stainless Steel
Per page:
1–5 of 7
