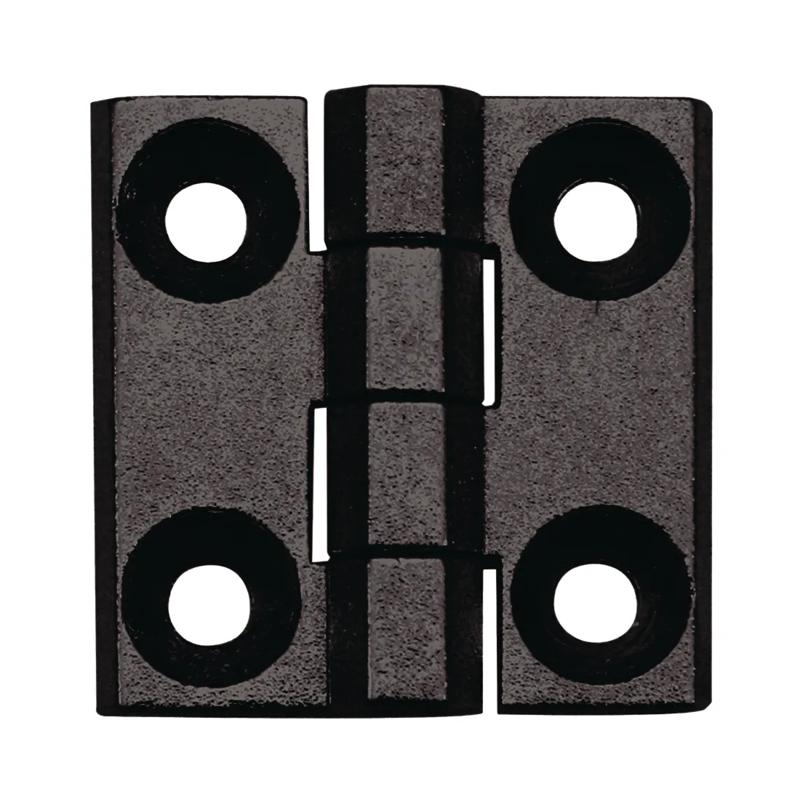

SR700 - HVAC Hinge - Flush Mount Offset
Showing 1-1 of 1
Per page:1-1 of 1

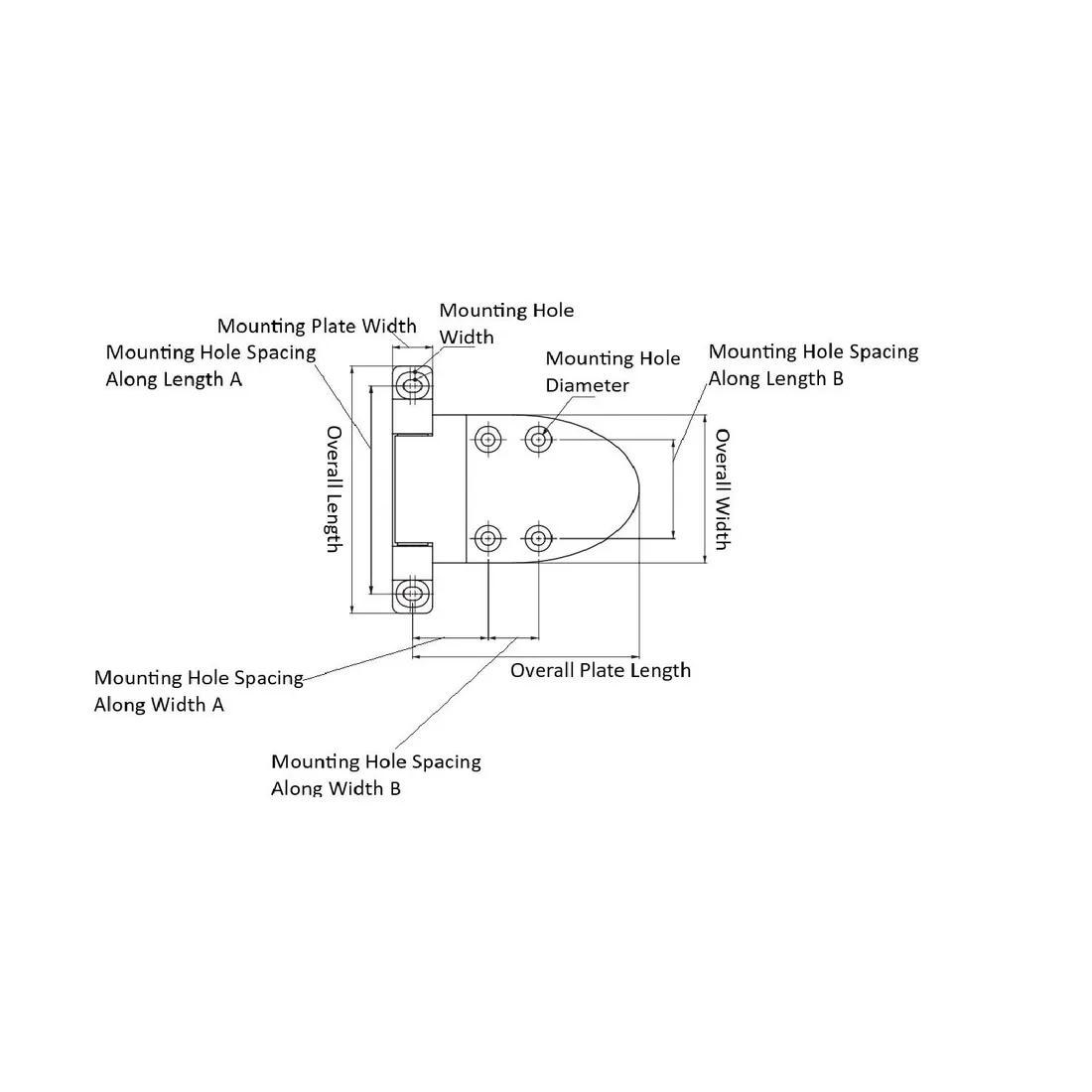

Item Code | Color | Mounting Hole Spacing Along Length B | Mounting Orientation | Material | Overall Width | Overall Length | Overall Thickness | Mounting Hole Diameter | Mounting Hole Width | Pin Material | Mounting Hole Shape | Finish | Body Material | Leaf Thickness | Hinge Type | Mounting Hole Spacing Along Width B | Mounting Hole Length | Mounting Method | Removability | Bearing Material | Mounting Hole Spacing Along Width A | Body Coating | Mount Style | Mounting Hole Spacing Along Length A | Maximum Rotation | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
70012002 | Black | 40.0 mm | Universal | Steel, Zinc Alloy | 60.0 mm | 100.0 mm | 20.5 mm | 5.3 mm | 11.0 mm, 5.2 mm | Steel | Countersink Through-Hole | Black Powder-Coated | Zinc Alloy | 6.0 mm | HVAC Hinge | 20.0 mm | 13.0 mm, 7.2 mm | Fastener Nuts, Screw/Bolts | Fixed | Delrin | 30.0 mm | Powder-Coated | Surface Mount | 84.0 mm | 180 ° |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
70012002
Color
Black
Mounting Hole Spacing Along Length B
40.0 mm
Mounting Orientation
Universal
Material
Steel, Zinc Alloy
