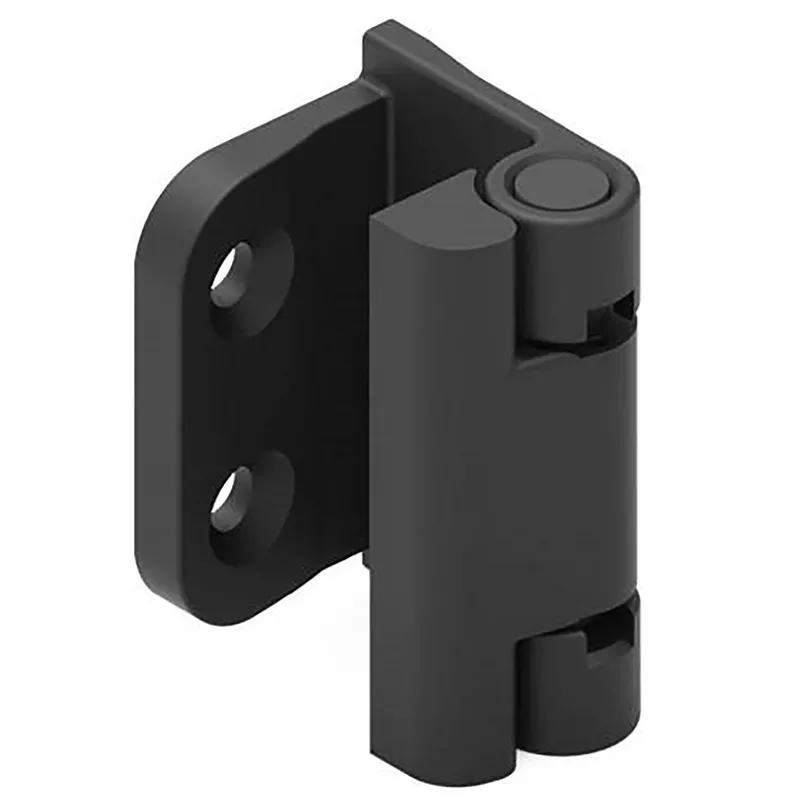

SR498 - Corner Hinge
Showing 1-1 of 1
Per page:1-1 of 1

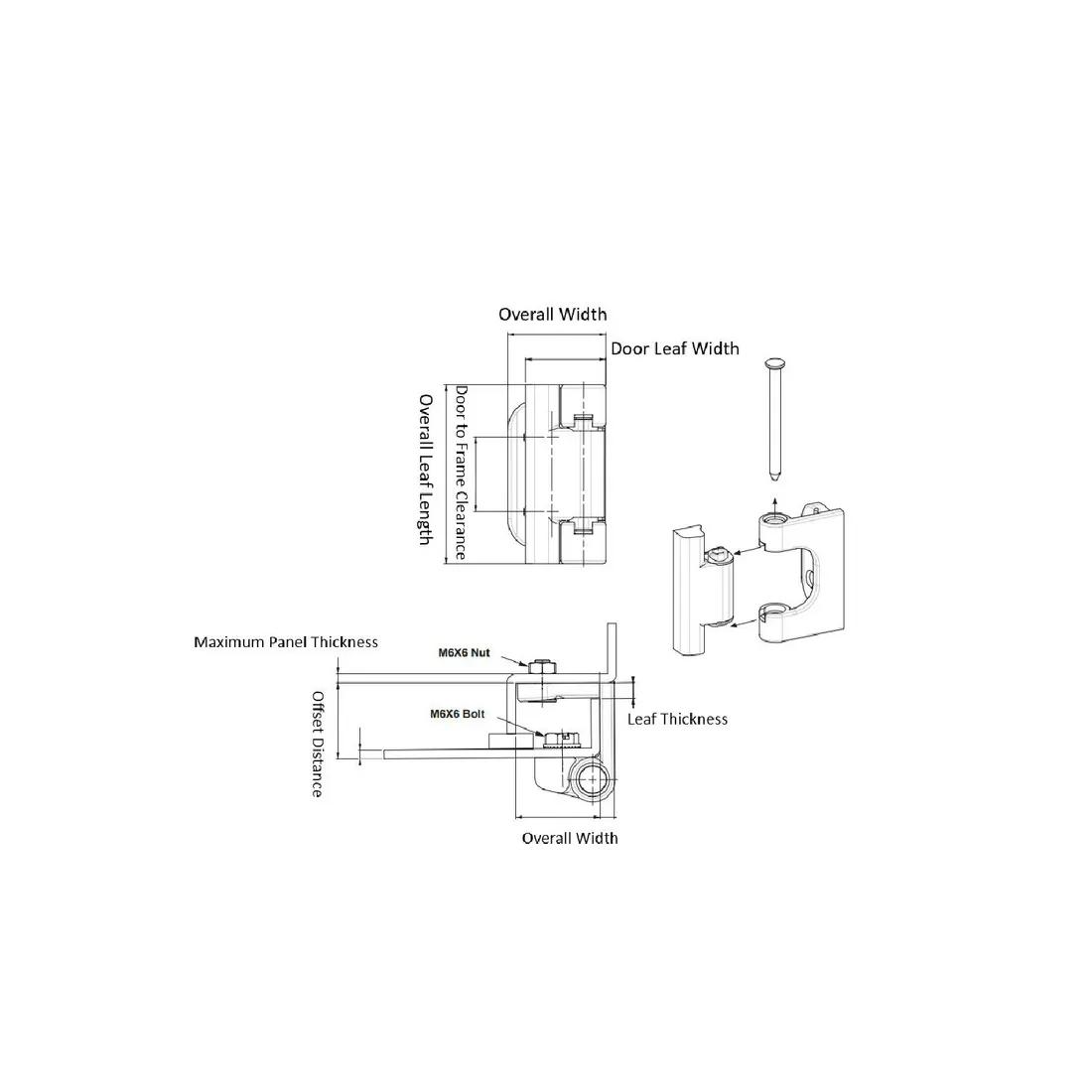

Item Code | Color | Pin Length | Mounting Orientation | Material | Overall Width | Door to Frame Clearance | Number of mounting holes | Body Material | Leaf Thickness | Hinge Type | Stud Thread Size | Maximum Rotation | Mounting Method | Removability | Overall Length | Door Leaf Width | Body Coating | Maximum Panel Thickness | Offset Distance | Pin Material | Overall Leaf Length | Finish | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
49812 | Black | 60.0 mm | Universal | Zinc Alloy | 33.0 mm | 25.0 mm | 2 | 30% Glass Fibre Nylon 6;Zinc Alloy | 4.0 mm | Corner Hinge | M6 | 180 ° | Screw, Bolt | Fixed | 60.0 mm | 27.0 mm | Powder-Coated | 2.0 mm | 25.0 mm | Plastic | 60.0 mm | Black Powder-Coated |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
49812
Color
Black
Pin Length
60.0 mm
Mounting Orientation
Universal
Material
Zinc Alloy
