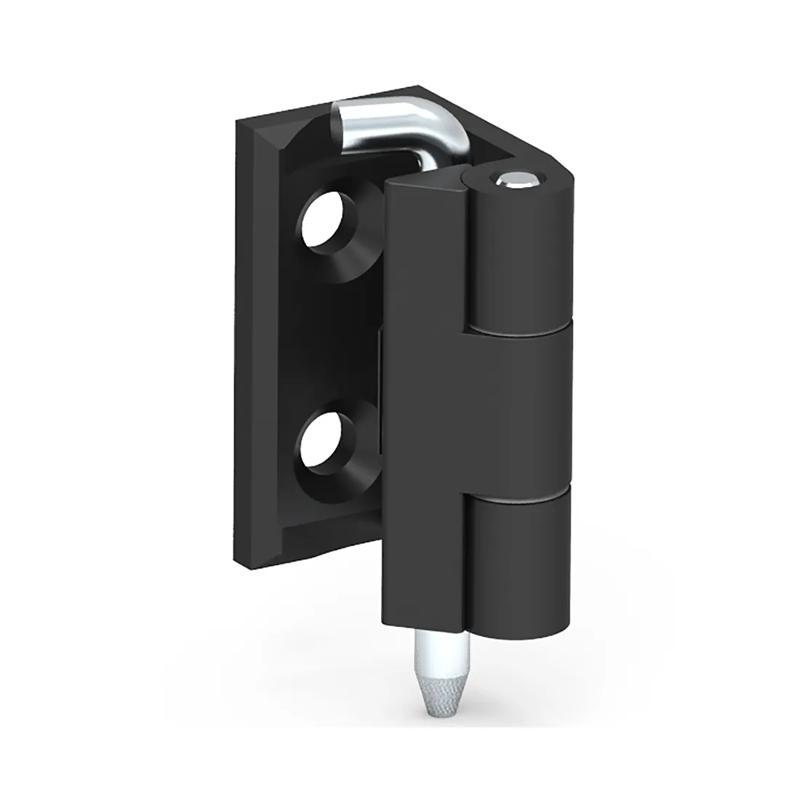

SR398 - Corner Hinge
Showing 1-1 of 1
Per page:1-1 of 1

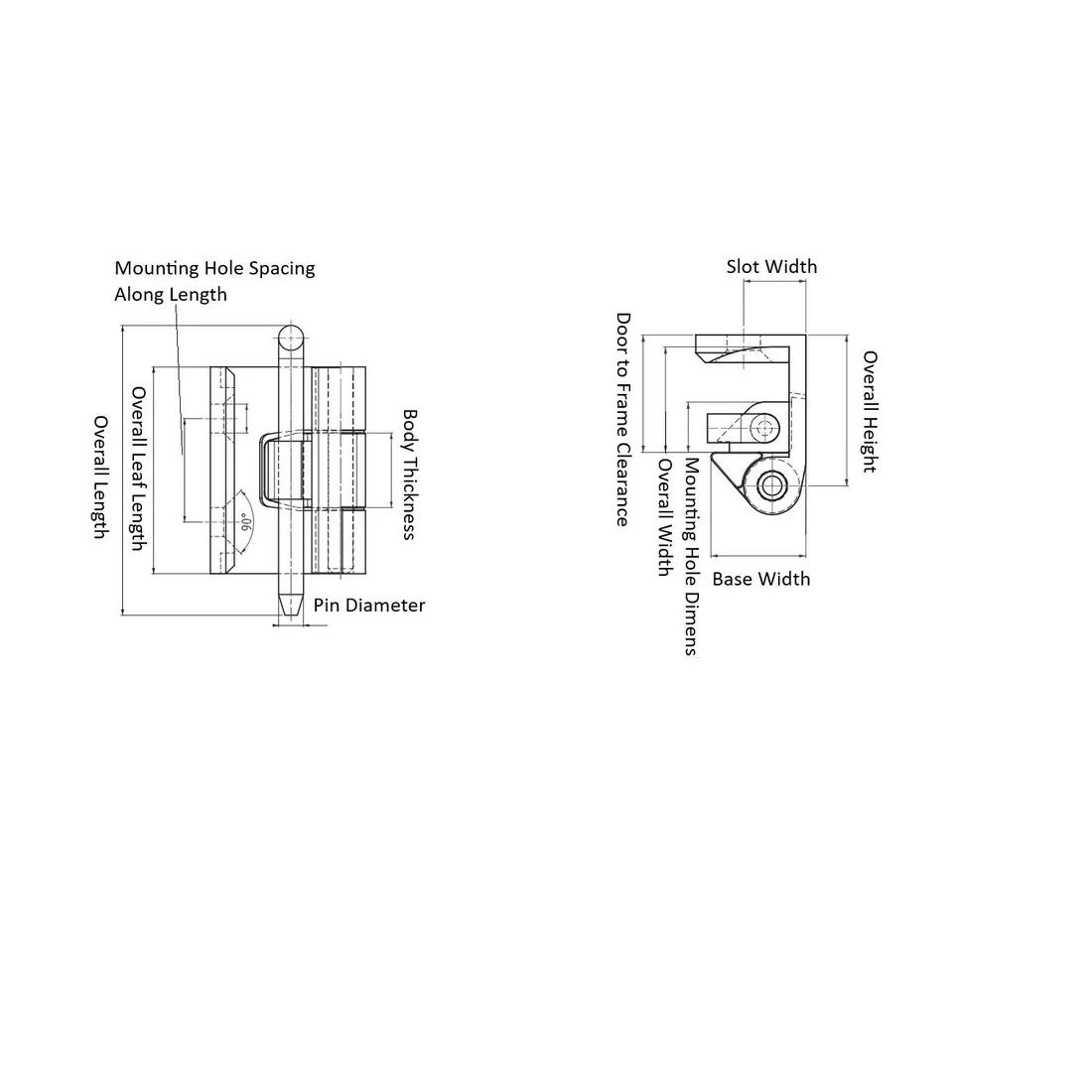

Item Code | Pin Length | Material | Overall Width | Overall Length | Door to Frame Clearance | Number of mounting holes | Pin Material | Mounting Hole Shape | Body Material | Hinge Type | Maximum Rotation | Mounting Method | Removability | Color | Pin Diameter | Mounting Orientation | Mounting Hole Spacing Along Length | Body Coating | Maximum Panel Thickness | Overall Leaf Length | Finish | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
398122 | 70.0 mm | Zinc Alloy | 23.0 mm | 70.0 mm | 24.5 mm | 2 | Steel | Countersunk | Zinc Alloy | Corner Hinge | 180 ° | Screw, Bolt | Removable Pin | Black | 6.0 mm | Universal | 25.0 mm | Powder-Coated | 2.0 mm | 50.0 mm | Black Powder-Coated |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
398122
Pin Length
70.0 mm
Material
Zinc Alloy
Overall Width
23.0 mm
Overall Length
70.0 mm
