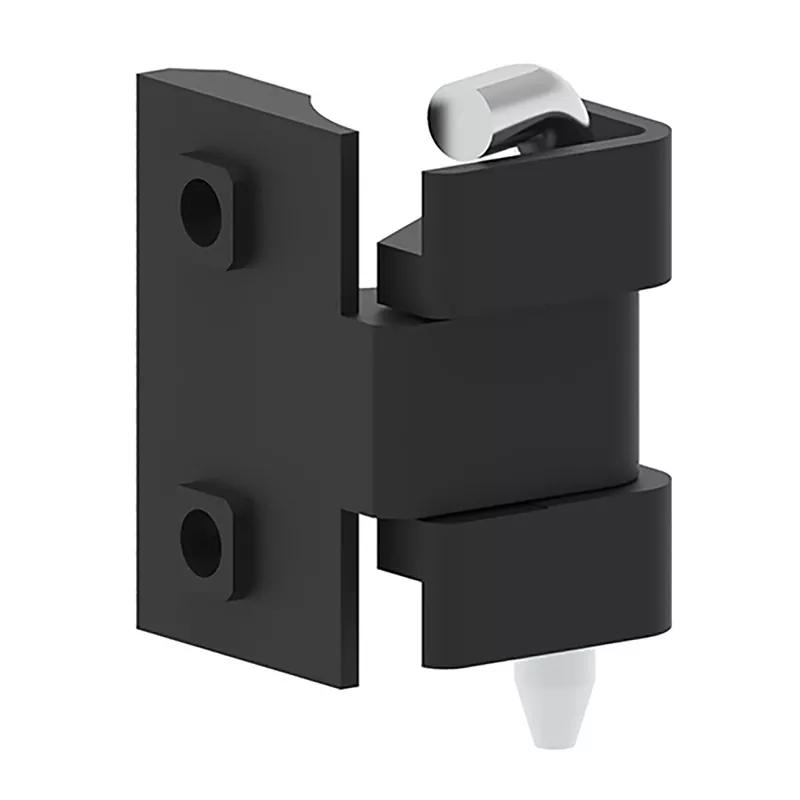

SR298 - Corner Hinge
Showing 1-1 of 1
Per page:1-1 of 1

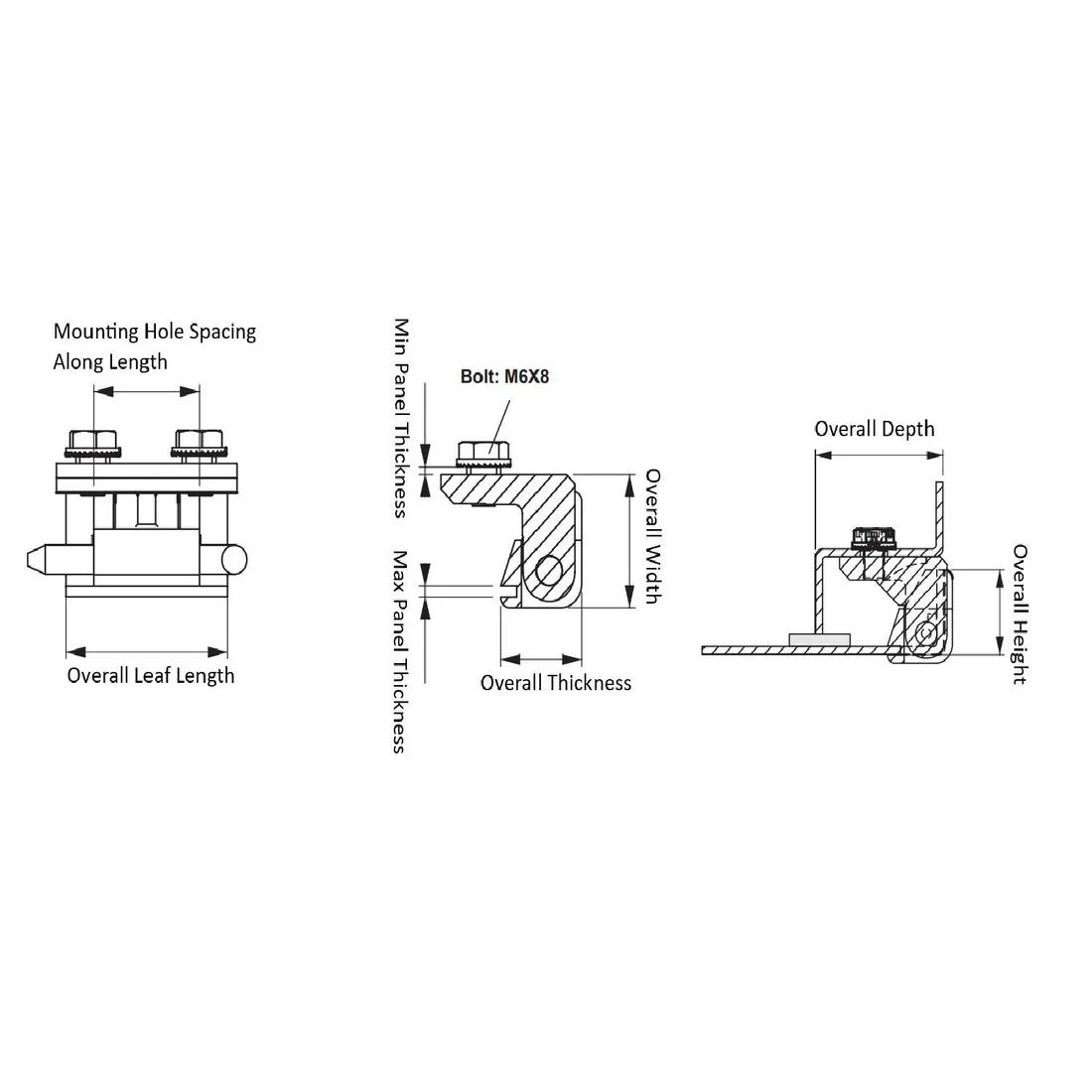

Item Code | Stud Length | Pin Length | Material | Overall Width | Overall Length | Pin Material | Mounting Hole Shape | Body Material | Stud Thread Size | Maximum Rotation | Mounting Method | Removability | Color | Pin Diameter | Mounting Orientation | Mounting Hole Spacing Along Length | Overall Thickness | Door to Frame Clearance | Body Coating | Maximum Panel Thickness | Overall Leaf Length | Finish | Overall Height | Hinge Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
298122 | 8.0 mm | 53.0 mm | Zinc Alloy | 27.5 mm | 53.0 mm | Steel | Countersunk | Zinc Alloy | M6 | 180 ° | Screw, Bolt | Removable Pin | Black | 6.0 mm | Universal | 25.0 mm | 19.0 mm | 22.0 mm | Powder-Coated | 2.0 mm | 37.5 mm | Black Powder-Coated | 22.0 mm | Corner Hinge |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
298122
Stud Length
8.0 mm
Pin Length
53.0 mm
Material
Zinc Alloy
Overall Width
27.5 mm
