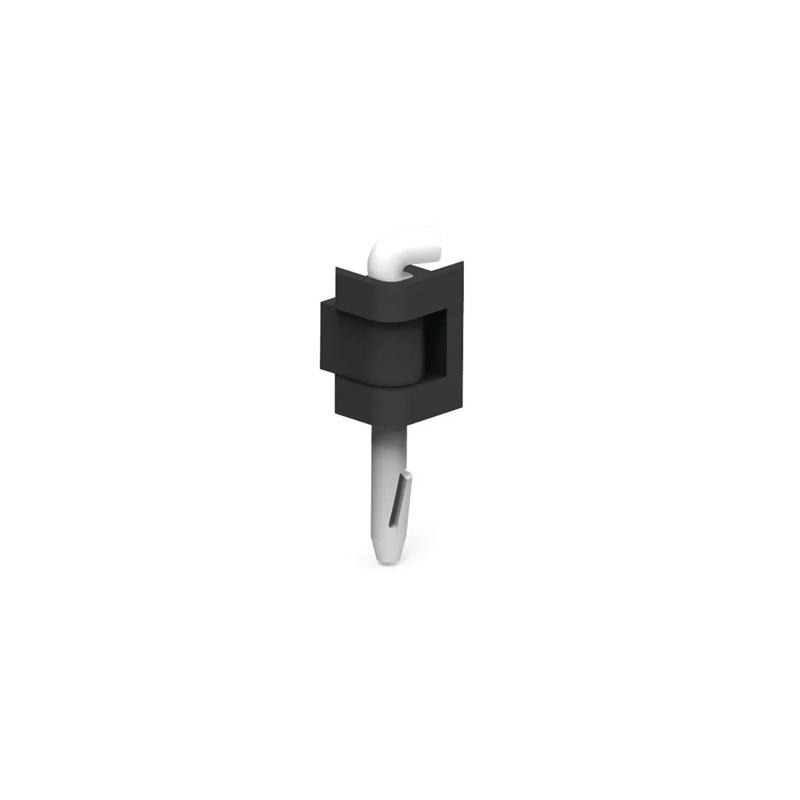

SR197 - Corner Hinge
Showing 1-1 of 1
Per page:1-1 of 1

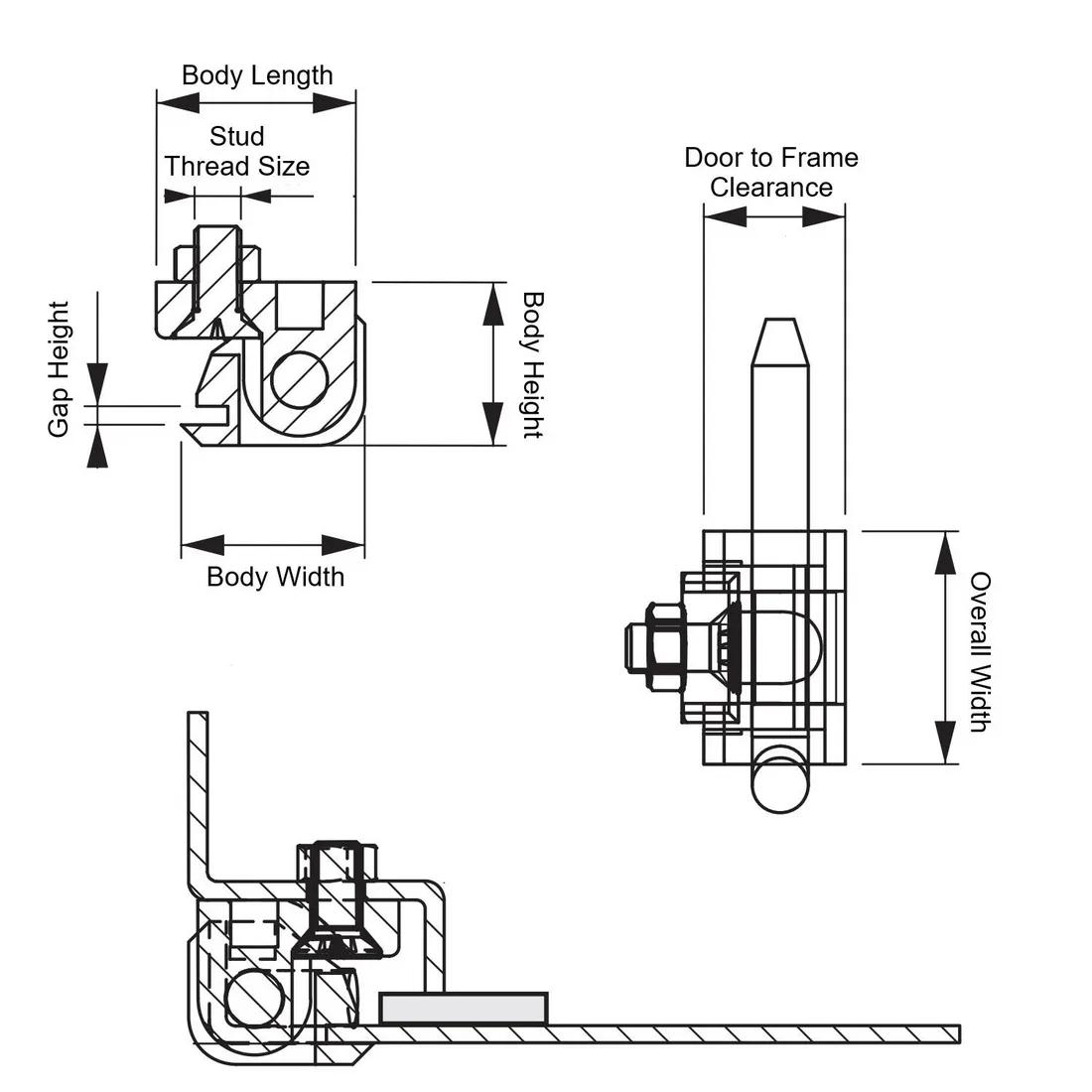

Item Code | Pin Length | Overall Width | Door to Frame Clearance | Pin Material | Body Material | Panel Thickness | Hinge Type | Stud Thread Size | Maximum Rotation | Mounting Method | Removability | Color | Pin Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
197201 | 58.0 mm | 25.0 mm | 15.0 mm | Delrin Steel | 30% Glass Fibre Nylon 6 | 1.5 mm | Corner Hinge | M5 | 180 ° | Screw, Bolt | Removable Pin | Black | 6.0 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
197201
Pin Length
58.0 mm
Overall Width
25.0 mm
Door to Frame Clearance
15.0 mm
Pin Material
Delrin Steel
