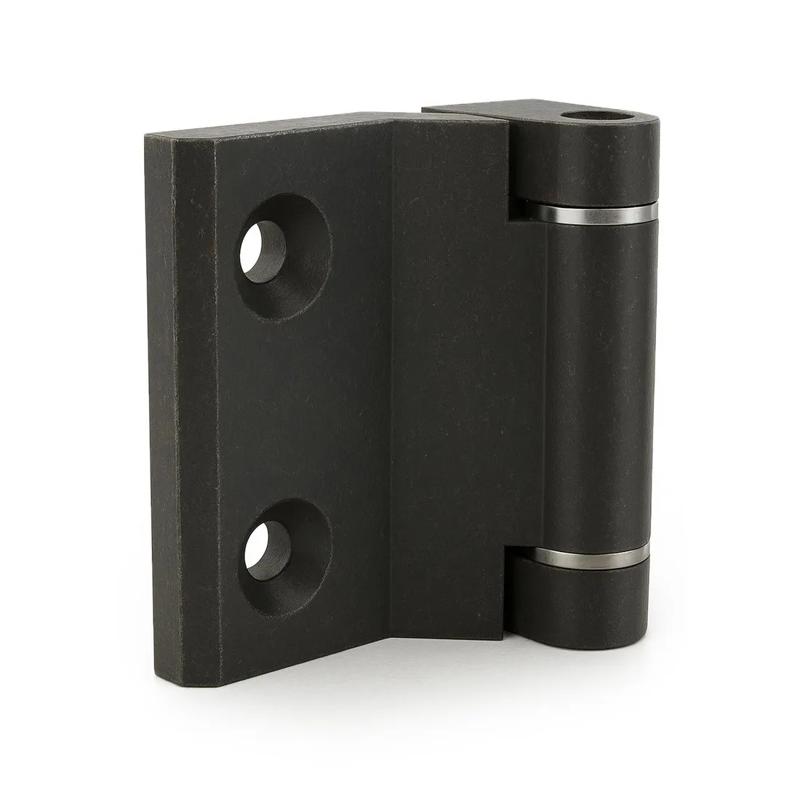

SR100 - Corner Hinge
Showing 1-5 of 5
Per page:1-5 of 5

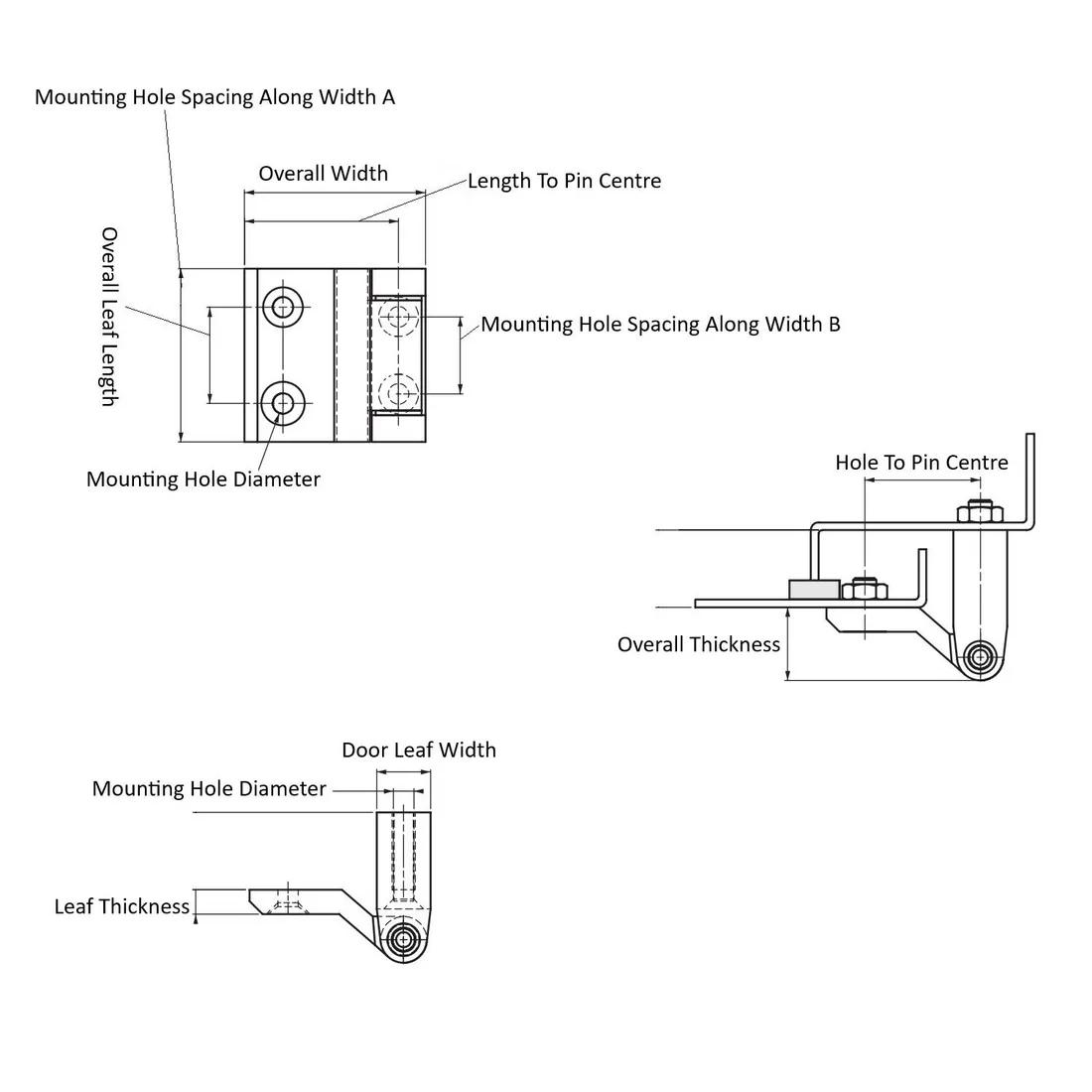

Item Code | Stud Length | Color | Pin Length | Mounting Orientation | Material | Overall Width | Body Coating | Mounting Hole Diameter | Pin Material | Mounting Hole Shape | Body Material | Hole To Pin Centre | Leaf Thickness | Hinge Type | Maximum Rotation | Mounting Method | Length To Pin Centre | Removability | Bearing Material | Mounting Hole Spacing Along Width A | Overall Length | Door Leaf Width | Overall Thickness | Door to Frame Clearance | Overall Leaf Length | Finish | Mounting Hole Spacing Along Width B | Stud Thread Size | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1001200 | 12.0 mm | Black | 45.0 mm | Universal | Zinc Alloy;Stainless Steel;Delrin | 47.0 mm | Powder-Coated | 5.3 mm | Stainless Steel | Countersunk | Zinc Alloy | 30.0 mm | 6.4 mm | Corner Hinge | 180 ° | Screw, Bolt | 40.0 mm | Fixed | Delrin | 25.0 mm | 45.0 mm | 14.0 mm | 0.0 mm | 0.0 mm | 45.0 mm | Black Powder-Coated | 20.0 mm | M6 | |
100125 | 12.0 mm | Black | 45.0 mm | Universal | Zinc Alloy;Stainless Steel;Delrin | 47.0 mm | Powder-Coated | 5.3 mm | Stainless Steel | Countersunk | Zinc Alloy | 30.0 mm | 6.4 mm | Corner Hinge | 180 ° | Screw, Bolt | 40.0 mm | Fixed | Delrin | 25.0 mm | 45.0 mm | 14.0 mm | 5.0 mm | 5.0 mm | 45.0 mm | Black Powder-Coated | 20.0 mm | M6 | |
1001225 | 12.0 mm | Black | 45.0 mm | Universal | Zinc Alloy;Stainless Steel;Delrin | 47.0 mm | Powder-Coated | 5.3 mm | Stainless Steel | Countersunk | Zinc Alloy | 30.0 mm | 6.4 mm | Corner Hinge | 180 ° | Screw, Bolt | 40.0 mm | Fixed | Delrin | 25.0 mm | 45.0 mm | 14.0 mm | 6.4 mm | 25.0 mm | 45.0 mm | Black Powder-Coated | 20.0 mm | M6 | |
100127 | 12.0 mm | Black | 45.0 mm | Universal | Zinc Alloy;Stainless Steel;Delrin | 47.0 mm | Powder-Coated | 5.3 mm | Stainless Steel | Countersunk | Zinc Alloy | 30.0 mm | - | Corner Hinge | 180 ° | Screw, Bolt | 40.0 mm | Fixed | Delrin | 25.0 mm | 45.0 mm | 14.0 mm | 14.0 mm | 7.0 mm | 45.0 mm | Black Powder-Coated | 20.0 mm | M6 | |
1001210 | 12.0 mm | Black | 45.0 mm | Universal | Zinc Alloy;Stainless Steel;Delrin | 47.0 mm | Powder-Coated | 5.3 mm | Stainless Steel | Countersunk | Zinc Alloy | 30.0 mm | 6.4 mm | Corner Hinge | 180 ° | Screw, Bolt | 40.0 mm | Fixed | Delrin | 25.0 mm | 45.0 mm | 14.0 mm | 6.4 mm | 10.0 mm | 45.0 mm | Black Powder-Coated | 20.0 mm | M6 |
Per page:
1-5 of 5
1–5 of 5 variants
Per page:
1001200
Stud Length
12.0 mm
Color
Black
Pin Length
45.0 mm
Mounting Orientation
Universal
100125
Stud Length
12.0 mm
Color
Black
Pin Length
45.0 mm
Mounting Orientation
Universal
1001225
Stud Length
12.0 mm
Color
Black
Pin Length
45.0 mm
Mounting Orientation
Universal
100127
Stud Length
12.0 mm
Color
Black
Pin Length
45.0 mm
Mounting Orientation
Universal
Per page:
1–5 of 6
