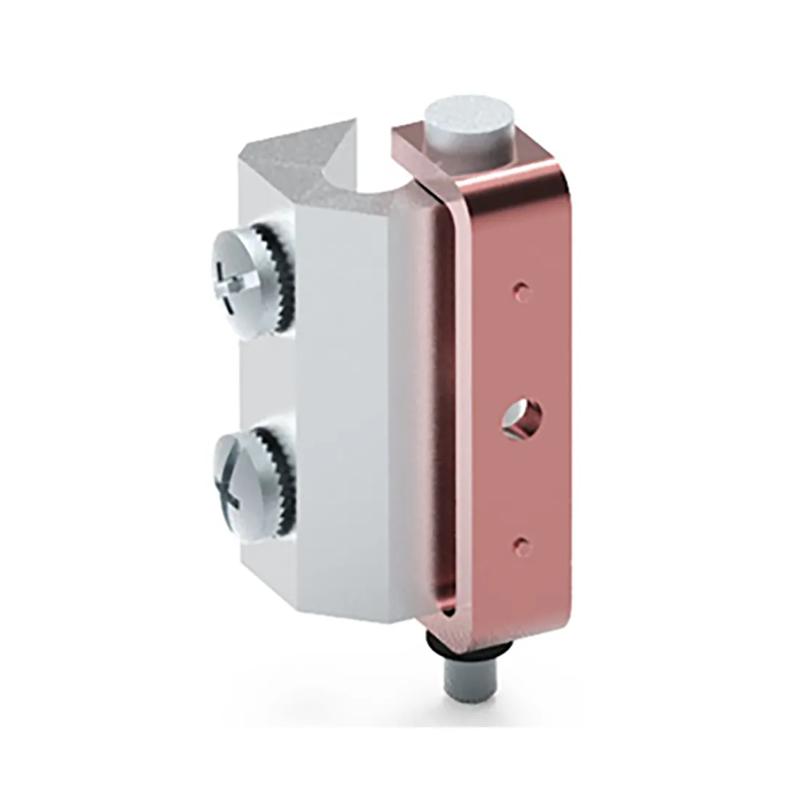

SR94 - Concealed Hinge
Showing 1-1 of 1
Per page:1-1 of 1
Item Code | Mounting Method | Overall Width | Overall Length | Pin Material | Coating | Overall Leaf Length | Body Material | Height To Pin Centre | Leaf Thickness | Hinge Type | Maximum Rotation | Mounting Hole Length | Color | Pin Diameter | Mounting Orientation | Mounting Hole Spacing Along Length | Thread Size | Material | Overall Thickness | Door to Frame Clearance | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
09413 | Screw, Weld | 21.5 mm | 40.0 mm | Steel | Copper Plated | 40.0 mm | Zinc Alloy | 16.5 mm | 2.5 mm | Concealed Hinge | 110 ° | 10.0 mm | Natural | 6.0 mm | Universal | 20.0 mm | M5 | Steel | 19.0 mm | 25.0 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
09413
Mounting Method
Screw, Weld
Overall Width
21.5 mm
Overall Length
40.0 mm
Pin Material
Steel
