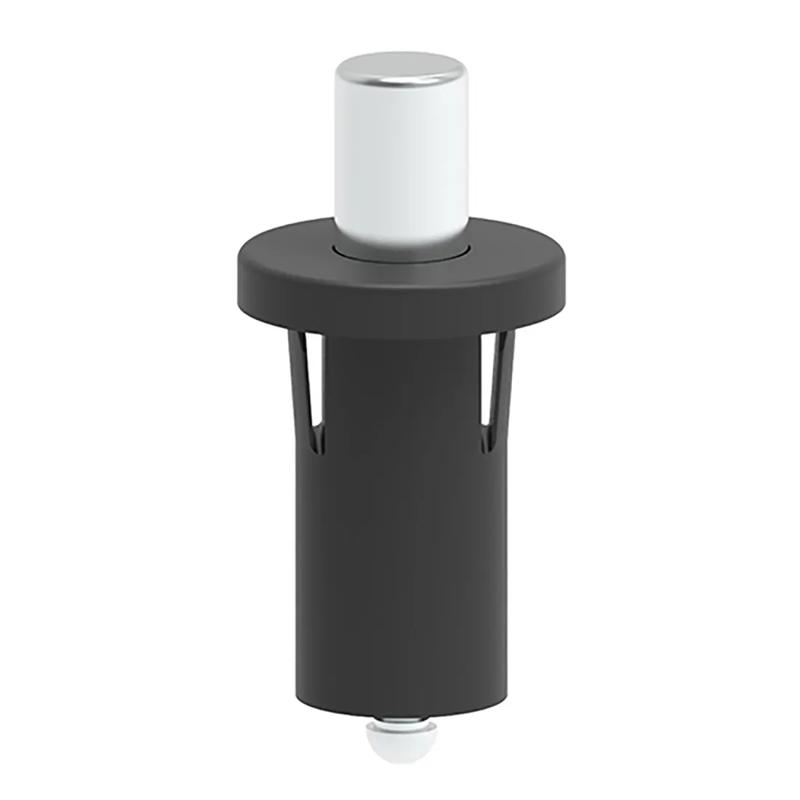

SR89 - Concealed Hinge
Showing 1-1 of 1
Per page:1-1 of 1

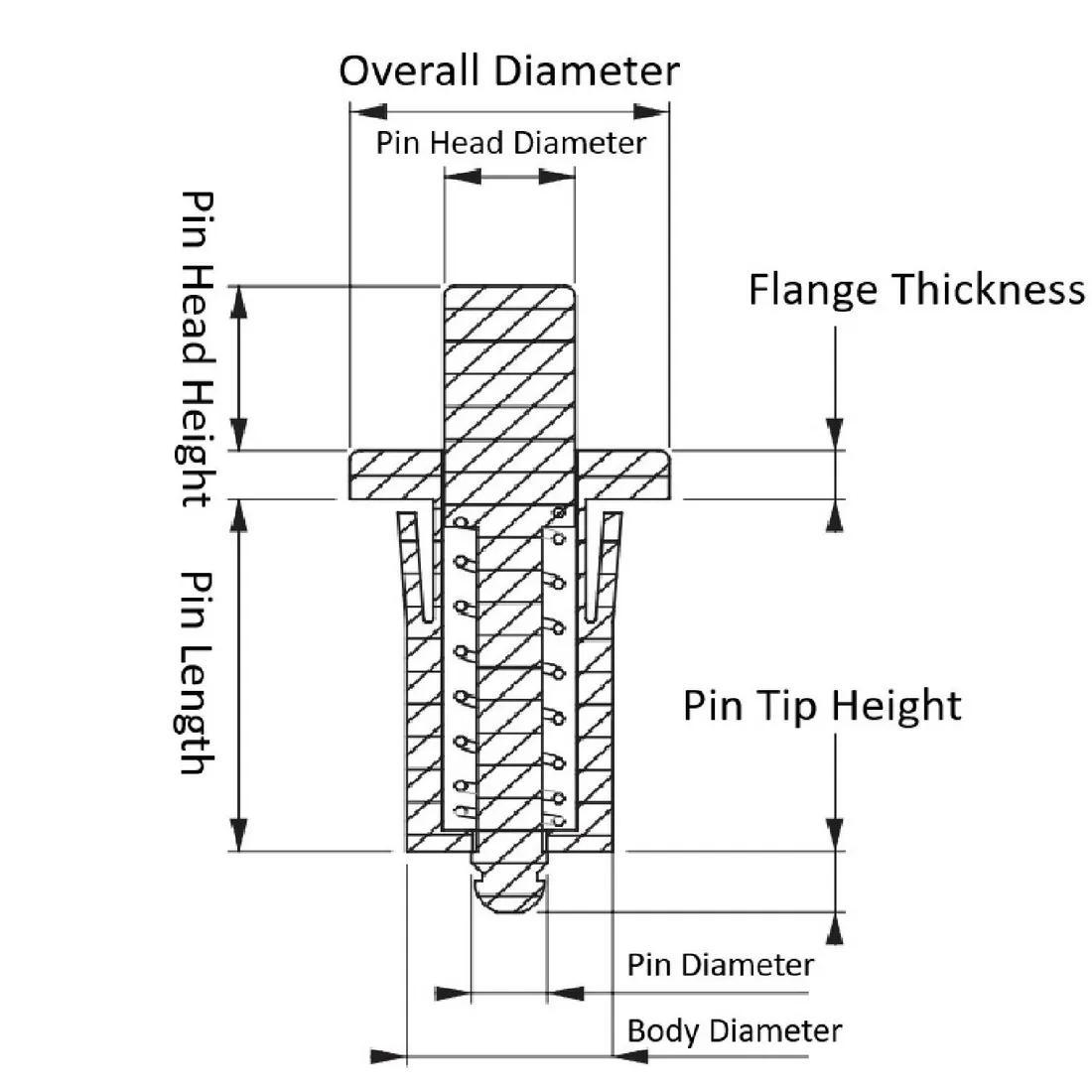

Item Code | Pin Head Diameter | Pin Length | Overall Diameter | Overall Width | Pin Material | Height Under Flange | Hinge Type | Maximum Rotation | Mounting Method | Removability | Color | Pin Tip Height | Pin Diameter | Mounting Orientation | Body Diameter | Overall Length | Pin Head Height (Seed) | Body Material | Flange Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
089 | 6.0 mm | 18.0 mm | 14.7 mm | 14.7 mm | Steel | 21.1 mm | Spring-Loaded Pin Hinges | 110 ° | Clip Installation | Spring Action Removable | Black | 3.1 mm | 3.5 mm | Universal | 9.5 mm | 28.9 mm | 8.4 mm | 30% Glass Fibre Nylon 6 | 2.5 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
089
Pin Head Diameter
6.0 mm
Pin Length
18.0 mm
Overall Diameter
14.7 mm
Overall Width
14.7 mm
