SR795 - Concealed Hinge
Showing 1-2 of 2
Per page:1-2 of 2

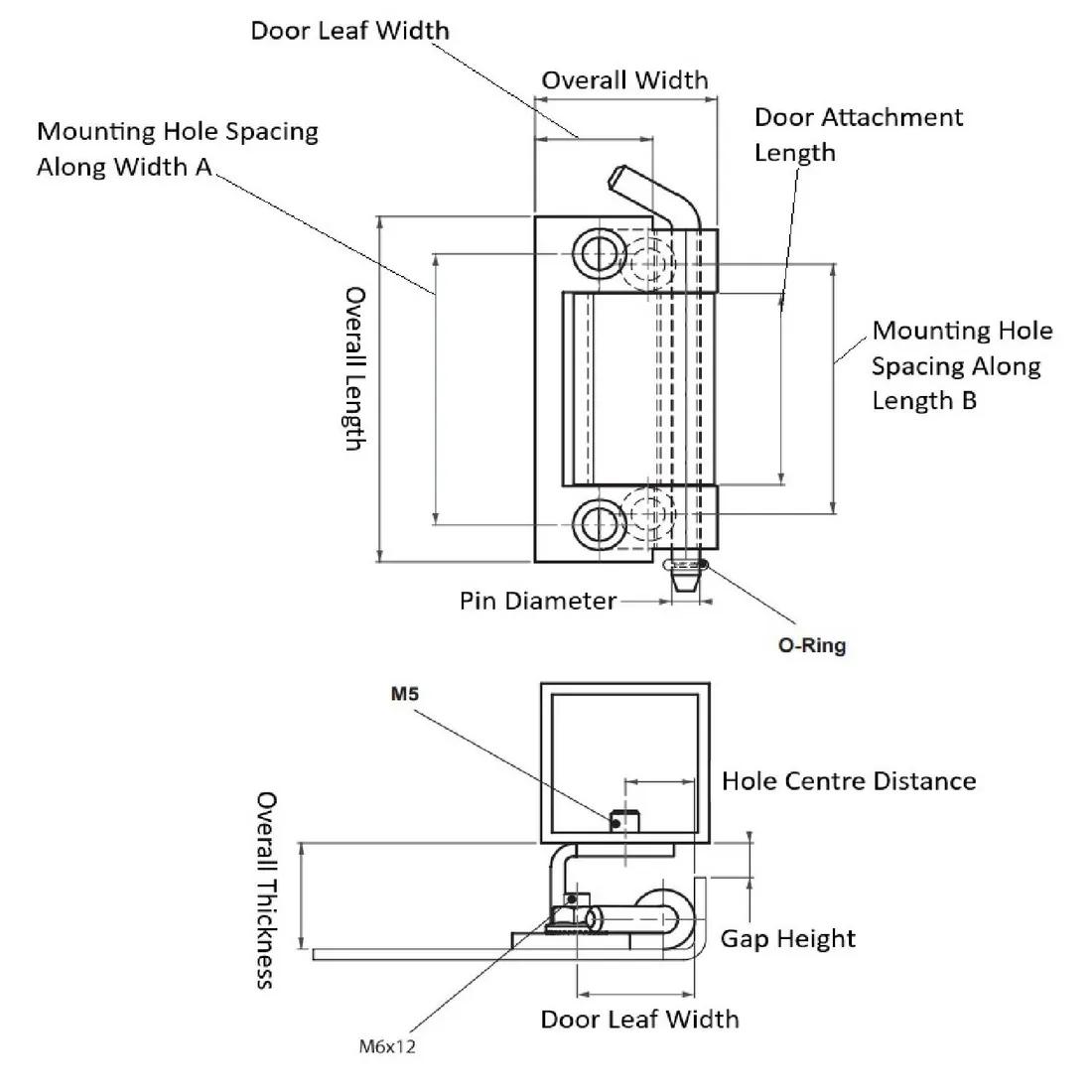

Item Code | Gap Height | Mounting Hole Spacing Along Width A | Mounting Hole Spacing Along Length B | Mounting Orientation | Door Attachment Length | Overall Width | Overall Thickness | Pin Material | Mounting Hole Shape | Overall Leaf Length | Body Material | Hole Centre Distance | Leaf Thickness | Hinge Type | Mounting Method | Removability | Color | Pin Diameter | Thread Size | Material | Overall Length | Door Leaf Width | Maximum Rotation | Latch Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
79563 | 6.5 mm | 51.0 mm | 47.0 mm | Universal | 36.0 mm | 32.5 mm | 20.0 mm | Steel | Through Hole | 51.0 mm | Steel | 12.0 mm | 6.5 mm | Concealed Hinge | Screw, Weld | Removable Pin | Natural | 5.0 mm | M5;M6 x 12 | Steel | 65.0 mm | 21.0 mm | 135 ° | Steel | |
79540 | 6.5 mm | 51.0 mm | 47.0 mm | Universal | 36.0 mm | 32.5 mm | 20.0 mm | Stainless Steel | - | 51.0 mm | Stainless Steel | 12.0 mm | 6.5 mm | Concealed Hinge | Screw, Weld | Removable Pin | Natural | 5.0 mm | M5;M6 x 12 | Stainless Steel | 65.0 mm | 21.0 mm | 135 ° | Stainless Steel |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
79563
Gap Height
6.5 mm
Mounting Hole Spacing Along Width A
51.0 mm
Mounting Hole Spacing Along Length B
47.0 mm
Mounting Orientation
Universal
79540
Gap Height
6.5 mm
Mounting Hole Spacing Along Width A
51.0 mm
Mounting Hole Spacing Along Length B
47.0 mm
Mounting Orientation
Universal
