SR695 - Concealed Hinge
Showing 1-4 of 4
Per page:1-4 of 4

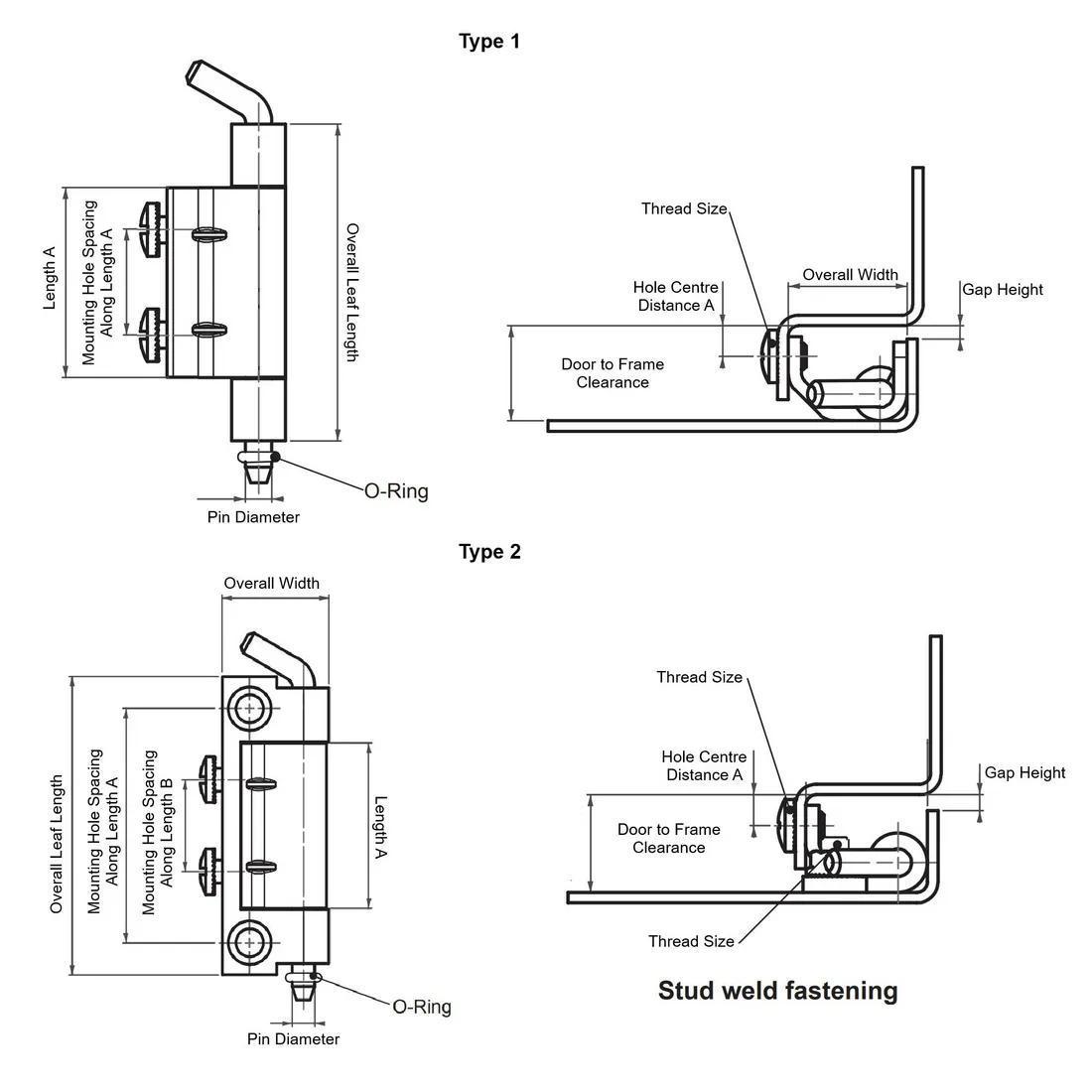

Item Code | Pin Diameter | Length A | Overall Width | Door to Frame Clearance | Hinge Type | Type | Mounting Method | Removability | Thread Size | Material | Welded Part Material | Overall Leaf Length | Mounting Hole Spacing Along Length A | Maximum Rotation | Gap Height | Overall Length | Leaf Thickness | Length to Hole Center | Latch Material | Mounting Hole Spacing Along Length B | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
695631 | 5.0 mm | 36.0 mm | 22.5 mm | 18.0 mm | Concealed Hinge | 1 | Screw, Weld | Removable Pin | M4 | Zinc-Plated Steel | Copper Plated | 60.0 mm | 20.0 mm | 120 ° | - | - | - | - | - | - | |
695401 | 5.0 mm | 36.0 mm | 22.5 mm | 18.0 mm | Concealed Hinge | 1 | Screw, Weld | Removable Pin | M4 | Stainless Steel | - | 60.0 mm | 20.0 mm | 120 ° | 2.5 mm | 60.0 mm | 2.5 mm | 6.0 mm | Stainless Steel | - | |
695632 | 5.0 mm | 36.0 mm | 23.5 mm | 18.5 mm | Concealed Hinge | 2 | Screw, Weld | Removable Pin | M4, M6x12 | Zinc-Plated Steel | - | 65.0 mm | 51.0 mm | 120 ° | 3.0 mm | 60.0 mm | 3.0 mm | 6.0 mm | Zinc-Plated Steel | 20.0 mm | |
695402 | 5.0 mm | 36.0 mm | 23.5 mm | 18.5 mm | Concealed Hinge | 2 | Screw, Weld | Removable Pin | M4, M6x12 | Stainless Steel | - | 65.0 mm | 51.0 mm | 120 ° | - | - | - | - | - | 20.0 mm |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
695631
Pin Diameter
5.0 mm
Length A
36.0 mm
Overall Width
22.5 mm
Door to Frame Clearance
18.0 mm
695401
Gap Height
2.5 mm
Pin Diameter
5.0 mm
Length A
36.0 mm
Overall Width
22.5 mm
695632
Gap Height
3.0 mm
Pin Diameter
5.0 mm
Length A
36.0 mm
Mounting Hole Spacing Along Length B
20.0 mm
695402
Pin Diameter
5.0 mm
Length A
36.0 mm
Mounting Hole Spacing Along Length B
20.0 mm
Overall Width
23.5 mm
