SR395 - Concealed Hinges
Showing 1-8 of 8
Per page:1-8 of 8

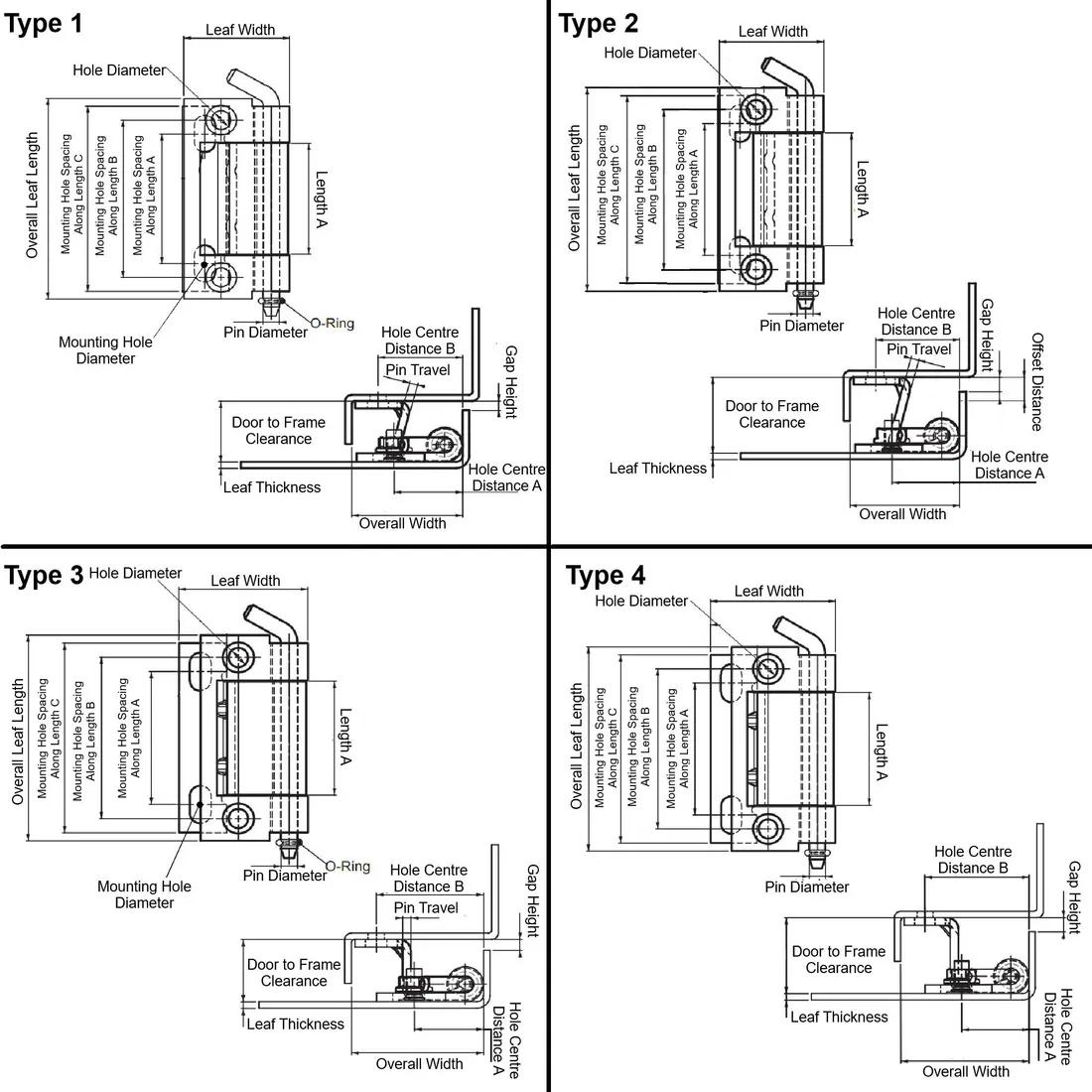

Item Code | Gap Height | Pin Diameter | Length A | Mounting Hole Spacing Along Length B | Material | Overall Width | Overall Length | Door to Frame Clearance | Mounting Hole Spacing Along Length C | Overall Leaf Length | Hinge Type | Type | Leaf Width | Mounting Method | Removability | Leaf Thickness | Length to Hole Center | Mounting Hole Spacing Along Length A | Maximum Rotation | Latch Material | Mounting Hole Diameter | Offset Distance | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
395634 | 4.0 mm | 5.0 mm | 36.0 mm | 51.0 mm | Zinc-Plated Steel | 40.0 mm | 60.0 mm | 24.0 mm | 60.0 mm | 65.0 mm | Concealed Hinge | 4 | 39.0 mm | Screw, Weld | Removable Pin | 2.0 mm | 21.0 mm | 42.0 mm | 120 ° | Zinc-Plated Steel | - | - | |
395401 | 3.0 mm | 5.0 mm | 36.0 mm | 51.0 mm | Stainless Steel | 34.0 mm | 60.0 mm | 20.0 mm | 60.0 mm | 65.0 mm | Concealed Hinge | 1 | 32.5 mm | Screw, Weld | Removable Pin | 2.0 mm | 21.0 mm | 42.0 mm | 120 ° | Stainless Steel | 6.5 mm x 12.0 | - | |
395404 | 4.0 mm | 5.0 mm | 36.0 mm | 51.0 mm | Stainless Steel | 40.0 mm | 60.0 mm | 24.0 mm | 60.0 mm | 65.0 mm | Concealed Hinge | 4 | 39.0 mm | Screw, Weld | Removable Pin | 2.0 mm | 21.0 mm | 42.0 mm | 120 ° | Stainless Steel | - | - | |
395633 | 3.0 mm | 5.0 mm | 36.0 mm | 51.0 mm | Zinc-Plated Steel | 40.0 mm | 60.0 mm | 20.0 mm | 60.0 mm | 65.0 mm | Concealed Hinge | 3 | 39.0 mm | Screw, Weld | Removable Pin | 2.0 mm | 21.0 mm | 42.0 mm | 120 ° | Zinc-Plated Steel | 6.5 mm x 12.0 | - | |
395403 | 3.0 mm | 5.0 mm | 36.0 mm | 51.0 mm | Stainless Steel | 40.0 mm | 60.0 mm | 20.0 mm | 60.0 mm | 65.0 mm | Concealed Hinge | 3 | 39.0 mm | Screw, Weld | Removable Pin | 2.0 mm | 21.0 mm | 42.0 mm | 120 ° | Stainless Steel | 6.5 mm x 12.0 | - | |
395402 | 4.0 mm | 5.0 mm | 36.0 mm | 51.0 mm | Stainless Steel | 34.0 mm | 60.0 mm | 24.0 mm | 60.0 mm | 65.0 mm | Concealed Hinge | 2 | 32.5 mm | Screw, Weld | Removable Pin | 2.0 mm | 21.0 mm | 42.0 mm | 120 ° | Stainless Steel | - | 8.0 mm | |
395632 | 4.0 mm | 5.0 mm | 36.0 mm | 51.0 mm | Zinc-Plated Steel | 34.0 mm | 60.0 mm | 24.0 mm | 60.0 mm | 65.0 mm | Concealed Hinge | 2 | 32.5 mm | Screw, Weld | Removable Pin | 2.0 mm | 21.0 mm | 42.0 mm | 120 ° | Zinc-Plated Steel | - | 8.0 mm | |
395631 | - | 5.0 mm | 36.0 mm | 51.0 mm | Zinc-Plated Steel | 34.0 mm | - | 20.0 mm | 60.0 mm | 65.0 mm | Concealed Hinge | 1 | 32.5 mm | Screw, Weld | Removable Pin | 2.0 mm | - | 42.0 mm | 120 ° | - | 6.5 mm x 12.0 | - |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
395634
Gap Height
4.0 mm
Pin Diameter
5.0 mm
Length A
36.0 mm
Mounting Hole Spacing Along Length B
51.0 mm
395401
Gap Height
3.0 mm
Pin Diameter
5.0 mm
Length A
36.0 mm
Mounting Hole Spacing Along Length B
51.0 mm
395404
Gap Height
4.0 mm
Pin Diameter
5.0 mm
Length A
36.0 mm
Mounting Hole Spacing Along Length B
51.0 mm
395633
Gap Height
3.0 mm
Pin Diameter
5.0 mm
Length A
36.0 mm
Mounting Hole Spacing Along Length B
51.0 mm
Per page:
1–5 of 9
