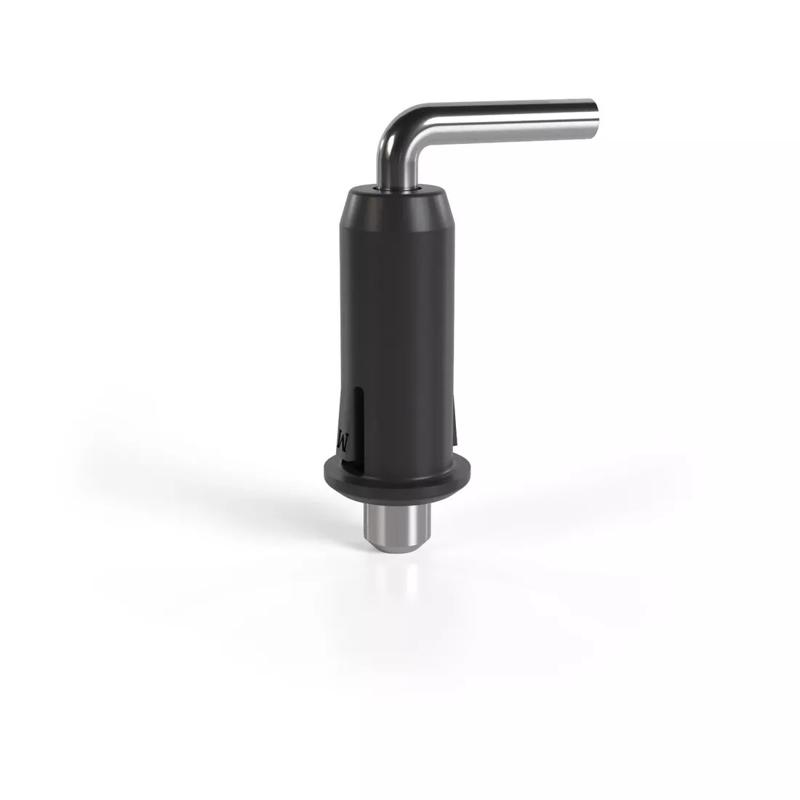

SR389 - Concealed Hinge - Spring Loaded
Showing 1-1 of 1
Per page:1-1 of 1

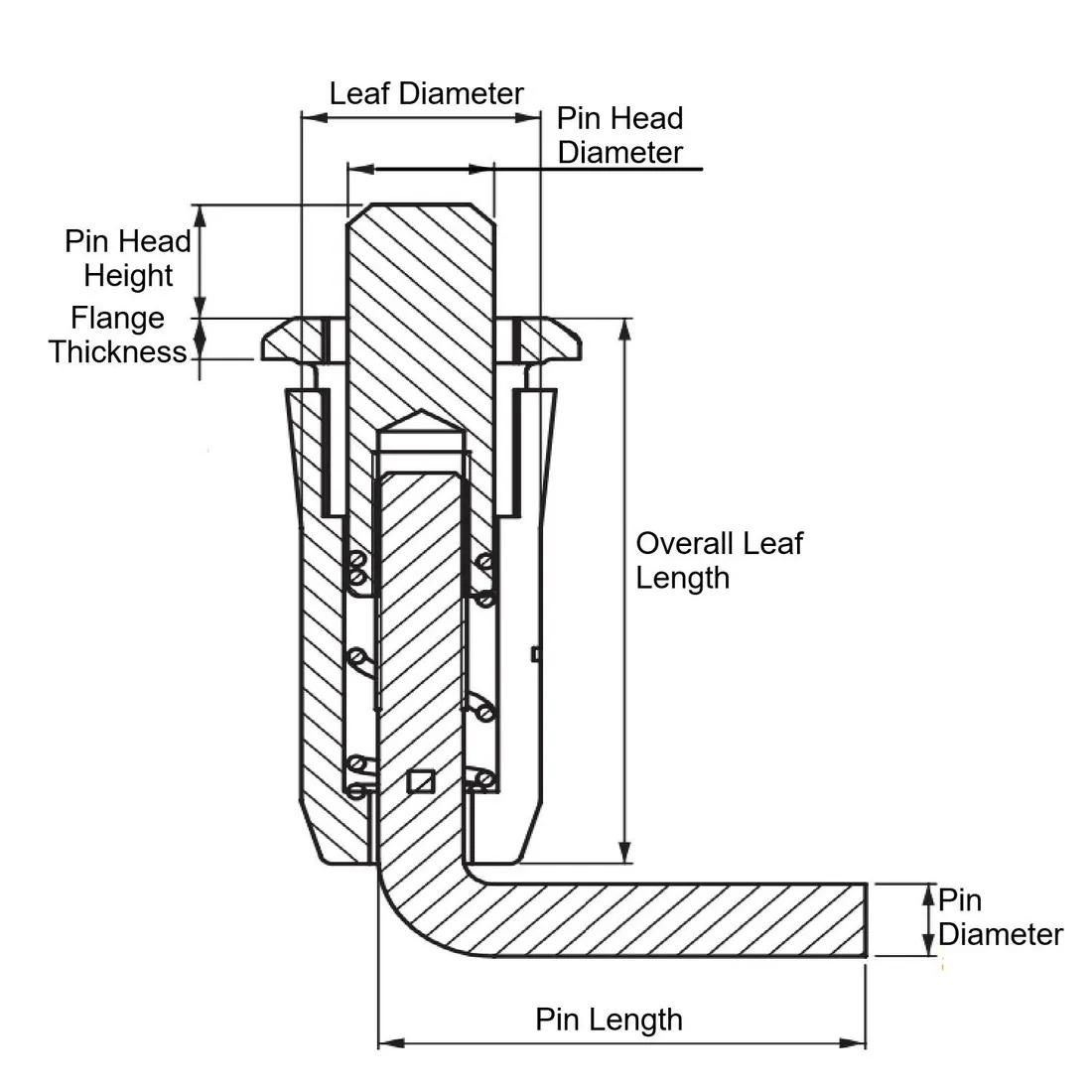

Item Code | Pin Head Diameter | Pin Length | Mounting Orientation | Material | Pin Material | Leaf Diameter | Hinge Type | Maximum Rotation | Mounting Method | Removability | Color | Pin Diameter | Overall Length | Pin Head Height (Seed) | Overall Leaf Length | Finish | Body Material | Flange Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
389 | 6.0 mm | 20.0 mm | Universal | Nylon | Steel | 10.0 mm | Spring-Loaded Pin Hinges | 110 ° | Clip Installation | Spring Action Removable | Black | 3.5 mm | 32.0 mm | 5.5 mm | 26.5 mm | No Finish | 30% Glass Fibre Nylon 6 | 2.0 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
389
Pin Head Diameter
6.0 mm
Pin Length
20.0 mm
Mounting Orientation
Universal
Material
Nylon
