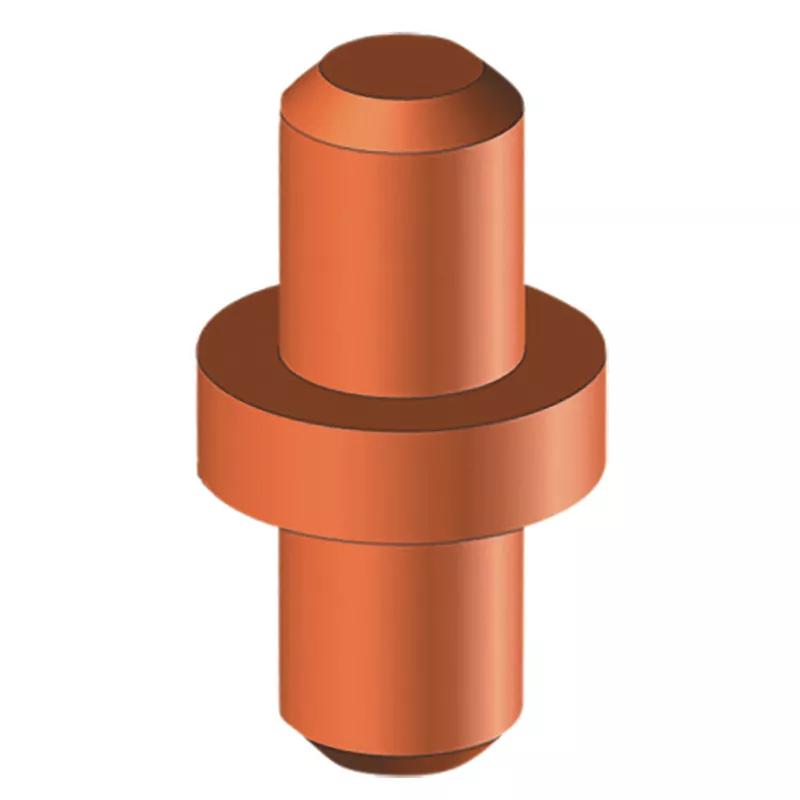

SR320 - Bottom Pivot Pin
Showing 1-1 of 1
Per page:1-1 of 1

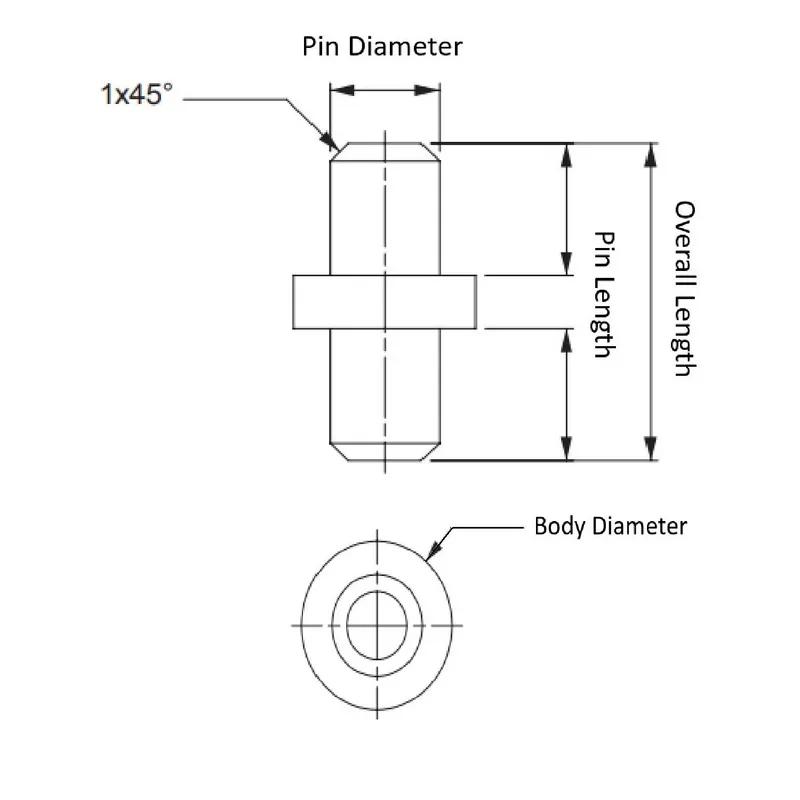

Item Code | Pin Length | Material | Overall Width | Overall Length | Body Coating | Coating | Body Material | Color | Pin Diameter | Mounting Orientation | Body Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
32003192 | 7.5 mm | Steel | 10.0 mm | 18.0 mm | Zinc-Plated | Zinc-Plated | Steel | Natural | 6.0 mm | Universal | 10.0 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
32003192
Pin Length
7.5 mm
Material
Steel
Overall Width
10.0 mm
Overall Length
18.0 mm
