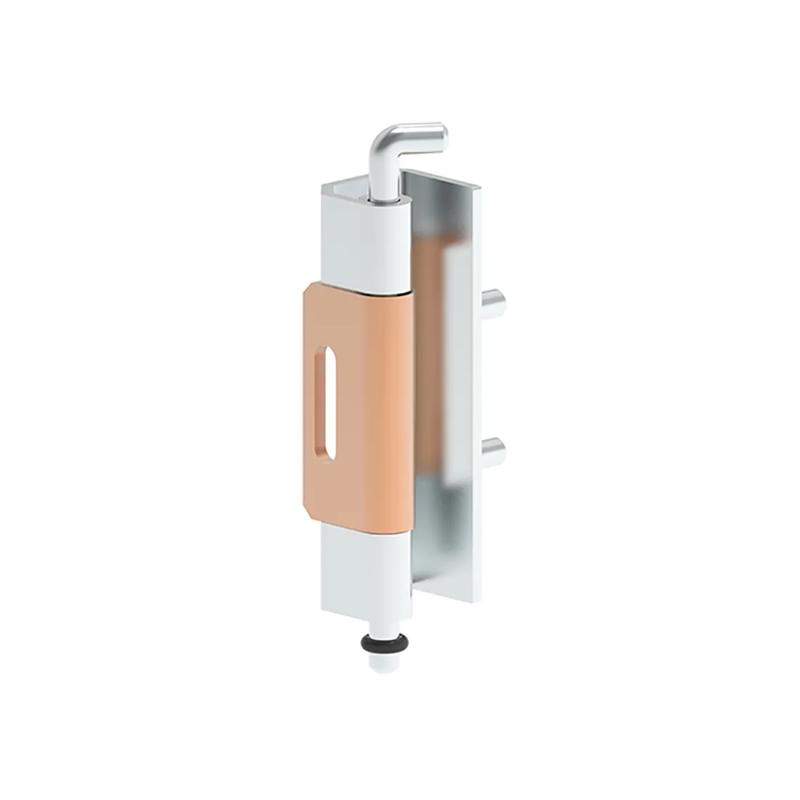

SR1095 - Concealed Hinge
Showing 1-1 of 1
Per page:1-1 of 1

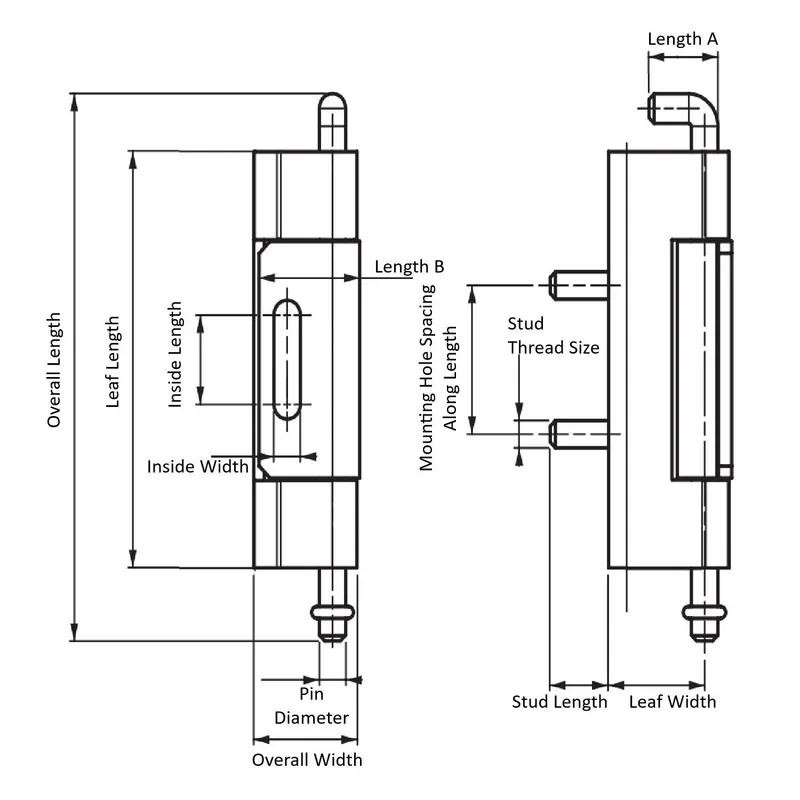

Item Code | Stud Length | Fixed Parts | Length A | Mounting Hole Spacing Along Length | Overall Width | Overall Length | Door to Frame Clearance | Body Material | Hinge Type | Stud Thread Size | Leaf Width | Inside Width | Mounting Method | Removability | Leaf Length (Seed) | Inside Length | Pin Material | Maximum Rotation | Length B | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
109563 | 11.0 mm | Copper Plated | 13.0 mm | 25.0 mm | 19.5 mm | 92.0 mm | 23.0 mm | Zinc-Plated Steel | Concealed Hinge | M5 | 18.0 mm | 5.0 mm | Screw, Weld | Removable Pin | 70.0 mm | 15.0 mm | Steel | 110 ° | 19.0 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
109563
Stud Length
11.0 mm
Fixed Parts
Copper Plated
Length A
13.0 mm
Mounting Hole Spacing Along Length
25.0 mm
