SR540 - Fixed Compression Latches & Locks - Short Housing
Showing 1-10 of 12
Per page:1-10 of 12

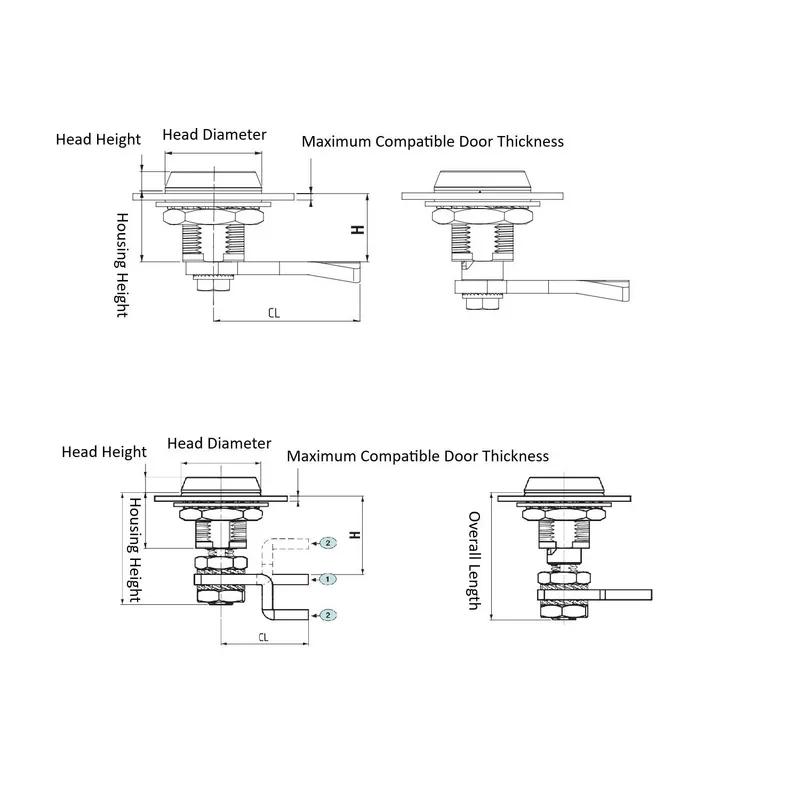

Item Code | Cam Material | Color | Housing Height | Material | Head Height | Maximum Compression | Gasket Material | Key Type | Head Style | Mounting Orientation | Housing Material | Maximum Panel Thickness | Head Diameter | Handle Type | Mounting Hole Width | Maximum Compatible Door Thickness | Grade | Latch Style | Mounting Hole Length | Driver Material | Overall Length | Nut Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5403401300002 | Stainless Steel | Silver | 22.0 mm | Stainless Steel | 6.0 mm | 4.0 mm | Rubber | 3.0 mm Double Bit Key | 3.0 mm Double Bit | Left-Handed | Stainless Steel | 8.0 mm | 30.0 mm | Driver Tool Operated Handle | 19.2 mm | 8.0 mm | AISI 316 | Fixed Compression | 22.0 mm | Stainless Steel | - | - | |
5403403800001 | Stainless Steel | Silver | 22.0 mm | Stainless Steel | 6.0 mm | 4.0 mm | Rubber | 8.0 mm Triangle Key | 8.0 mm Square | Right-Handed | Stainless Steel | 8.0 mm | 30.0 mm | Driver Tool Operated Handle | 19.2 mm | 8.0 mm | AISI 316 | Fixed Compression | 22.0 mm | Stainless Steel | - | - | |
5403403800002 | Stainless Steel | Silver | 22.0 mm | Stainless Steel | 6.0 mm | 4.0 mm | Rubber | 8.0 mm Triangle Key | 8.0 mm Square | Left-Handed | Stainless Steel | 8.0 mm | 30.0 mm | Driver Tool Operated Handle | 19.2 mm | 8.0 mm | AISI 316 | Fixed Compression | 22.0 mm | Stainless Steel | - | - | |
5403402800001 | Stainless Steel | Silver | 22.0 mm | Stainless Steel | 6.0 mm | 4.0 mm | Rubber | 8.0 mm Square Key | 8.0 mm Square | Right-Handed | Stainless Steel | 8.0 mm | 30.0 mm | Driver Tool Operated Handle | 19.2 mm | 8.0 mm | AISI 316 | Fixed Compression | 22.0 mm | Stainless Steel | - | - | |
5403401300001 | Stainless Steel | Silver | 22.0 mm | Stainless Steel | 6.0 mm | 4.0 mm | Rubber | 3.0 mm Double Bit Key | 3.0 mm Double Bit | Right-Handed | Stainless Steel | 8.0 mm | 30.0 mm | Driver Tool Operated Handle | 19.2 mm | 8.0 mm | AISI 316 | Fixed Compression | 22.0 mm | Stainless Steel | - | - | |
5403402800002 | Stainless Steel | Silver | 22.0 mm | Stainless Steel | 6.0 mm | 4.0 mm | Rubber | 8.0 mm Square Key | 8.0 mm Square | Left-Handed | Stainless Steel | 8.0 mm | 30.0 mm | Driver Tool Operated Handle | 19.2 mm | 8.0 mm | AISI 316 | Fixed Compression | 22.0 mm | Stainless Steel | - | - | |
5404401300001 | Stainless Steel | - | - | - | 6.0 mm | 6.0 mm | Rubber | 3.0 mm Double Bit Key | 3.0 mm Double Bit | Right-Handed | Stainless Steel | - | 30.0 mm | Driver Tool Operated Handle | 19.2 mm | 8.0 mm | AISI 304, AISI 316 | Compression Latch | 22.2 mm | Stainless Steel | 50.0 mm | Stainless Steel | |
5404401300002 | Stainless Steel | - | - | - | 6.0 mm | 6.0 mm | Rubber | 3.0 mm Double Bit Key | 3.0 mm Double Bit | Left-Handed | Stainless Steel | - | 30.0 mm | Driver Tool Operated Handle | 19.2 mm | 8.0 mm | AISI 304, AISI 316 | Compression Latch | 22.2 mm | Stainless Steel | 50.0 mm | Stainless Steel | |
5404403800001 | Stainless Steel | - | - | - | 6.0 mm | 6.0 mm | Rubber | 8.0 mm Triangle Key | 8.0 mm Triangle | Right-Handed | Stainless Steel | - | 30.0 mm | Driver Tool Operated Handle | 19.2 mm | 8.0 mm | AISI 304, AISI 316 | Compression Latch | 22.2 mm | Stainless Steel | 50.0 mm | Stainless Steel |
Per page:
1-10 of 12
1–5 of 12 variants
Per page:
5403401300002
Cam Material
Stainless Steel
Color
Silver
Housing Height
22.0 mm
Material
Stainless Steel
5403403800001
Cam Material
Stainless Steel
Color
Silver
Housing Height
22.0 mm
Material
Stainless Steel
5403403800002
Cam Material
Stainless Steel
Color
Silver
Housing Height
22.0 mm
Material
Stainless Steel
5403402800001
Cam Material
Stainless Steel
Color
Silver
Housing Height
22.0 mm
Material
Stainless Steel
Per page:
1–5 of 13
