SR40 - Stainless Steel Adjustable Compression Latches and Locks
Showing 1-10 of 20
Per page:1-10 of 20

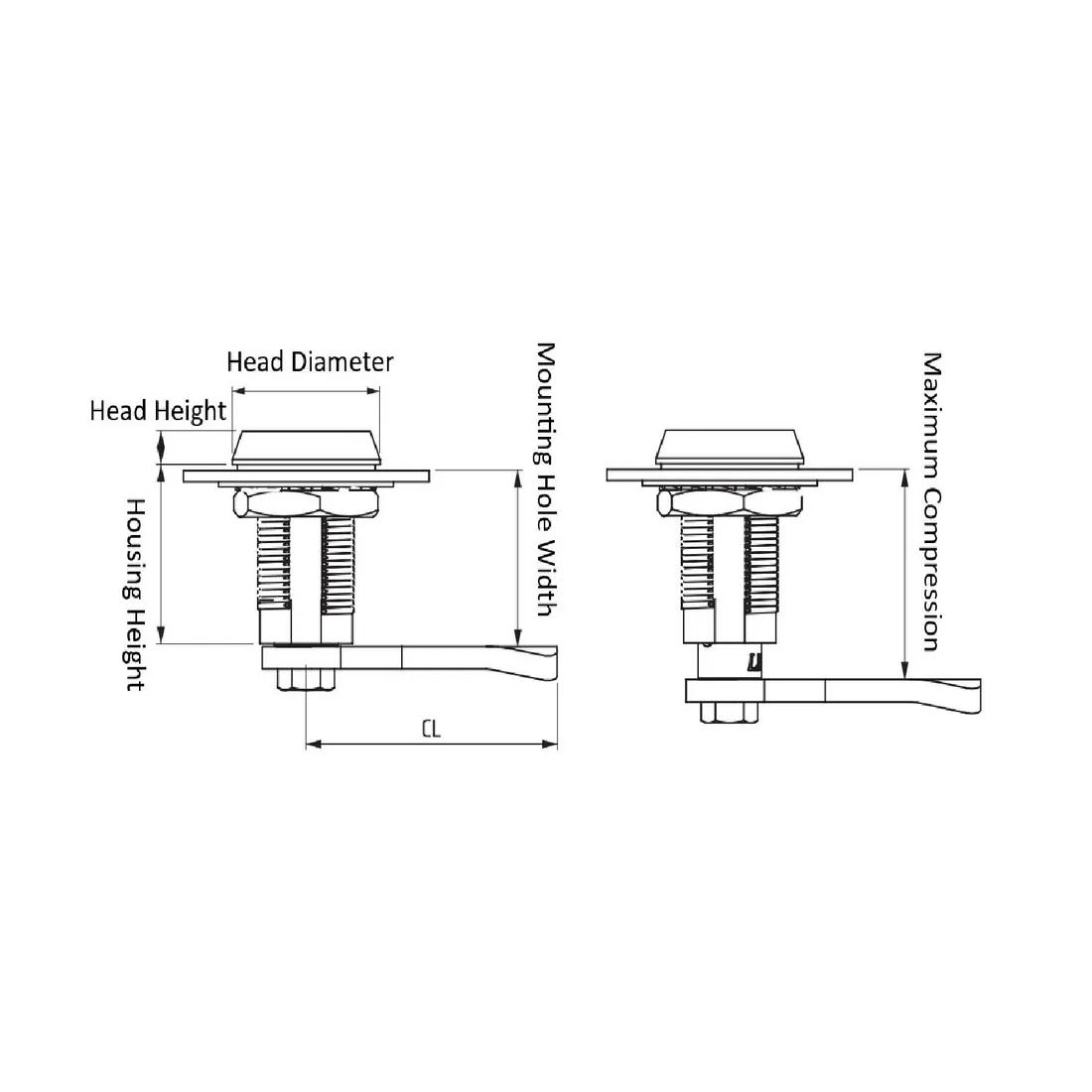

Item Code | Cam Material | Color | Housing Height | Material | Head Diameter | Head Height | Maximum Compression | Washer Material | Key Type | Head Style | Latch Style | Mounting Orientation | Housing Material | Handle Type | Mounting Hole Width | Mounting Hole Length | Driver Material | Overall Length | Finish | Maximum Compatible Door Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0408403700002 | Stainless Steel | Silver | 32.0 mm | Stainless Steel | 30.0 mm | 6.0 mm | 6.0 mm | Rubber | 7.0 mm Triangle Key | 7.0 mm Triangle | Fixed Compression | Left-Handed | Stainless Steel | Driver Tool Operated Handle | 19.2 mm | 22.0 mm | Stainless Steel | - | - | - | |
0408402800001 | Stainless Steel | Silver | 32.0 mm | Stainless Steel | 30.0 mm | 6.0 mm | 6.0 mm | Rubber | 8.0 mm Square Key | 8.0 mm Square | Fixed Compression | Right-Handed | Stainless Steel | Driver Tool Operated Handle | 19.2 mm | 22.0 mm | Stainless Steel | - | - | - | |
0408404200002 | Stainless Steel | Silver | 32.0 mm | Stainless Steel | 30.0 mm | 6.0 mm | 6.0 mm | Rubber | 2 x 4 mm Slot Key | 2 x 4.0 mm Slot | Fixed Compression | Left-Handed | Stainless Steel | - | 19.2 mm | 22.0 mm | Stainless Steel | - | - | - | |
0408402800002 | Stainless Steel | Silver | 32.0 mm | Stainless Steel | 30.0 mm | 6.0 mm | 6.0 mm | Rubber | 8.0 mm Square Key | 8.0 mm Square | Fixed Compression | Left-Handed | Stainless Steel | Driver Tool Operated Handle | 19.2 mm | 22.0 mm | Stainless Steel | - | - | - | |
0408403700001 | Stainless Steel | Silver | 32.0 mm | Stainless Steel | 30.0 mm | 6.0 mm | 6.0 mm | Rubber | 7.0 mm Triangle Key | 7.0 mm Triangle | Fixed Compression | Right-Handed | Stainless Steel | Driver Tool Operated Handle | 19.2 mm | 22.0 mm | Stainless Steel | - | - | - | |
0408408800002 | Stainless Steel | Silver | 32.0 mm | Stainless Steel | 30.0 mm | 6.0 mm | 6.0 mm | Rubber | Railway Key | Railway | Fixed Compression | Left-Handed | Stainless Steel | Driver Tool Operated Handle | 19.2 mm | 22.0 mm | Stainless Steel | - | - | - | |
0408408800001 | Stainless Steel | Silver | 32.0 mm | Stainless Steel | 30.0 mm | 6.0 mm | 6.0 mm | Rubber | Railway Key | Railway | Fixed Compression | Right-Handed | Stainless Steel | Driver Tool Operated Handle | 19.2 mm | 22.0 mm | Stainless Steel | - | - | - | |
0408401300001 | Stainless Steel | Silver | 32.0 mm | Stainless Steel | 30.0 mm | 6.0 mm | 6.0 mm | Rubber | 3.0 mm Double Bit Key | 3.0 mm Double Bit | Fixed Compression | Right-Handed | Stainless Steel | Driver Tool Operated Handle | 19.2 mm | 22.0 mm | Stainless Steel | - | - | - | |
0408404200001 | Stainless Steel | Silver | 32.0 mm | Stainless Steel | 30.0 mm | 6.0 mm | 6.0 mm | Rubber | 2 x 4 mm Slot Key | 2 x 4.0 mm Slot | Fixed Compression | Right-Handed | Stainless Steel | - | 19.2 mm | 22.0 mm | Stainless Steel | - | - | - |
Per page:
1-10 of 20
1–5 of 20 variants
Per page:
0408403700002
Cam Material
Stainless Steel
Color
Silver
Housing Height
32.0 mm
Material
Stainless Steel
0408402800001
Cam Material
Stainless Steel
Color
Silver
Housing Height
32.0 mm
Material
Stainless Steel
0408404200002
Cam Material
Stainless Steel
Color
Silver
Housing Height
32.0 mm
Material
Stainless Steel
0408402800002
Cam Material
Stainless Steel
Color
Silver
Housing Height
32.0 mm
Material
Stainless Steel
Per page:
1–5 of 21
