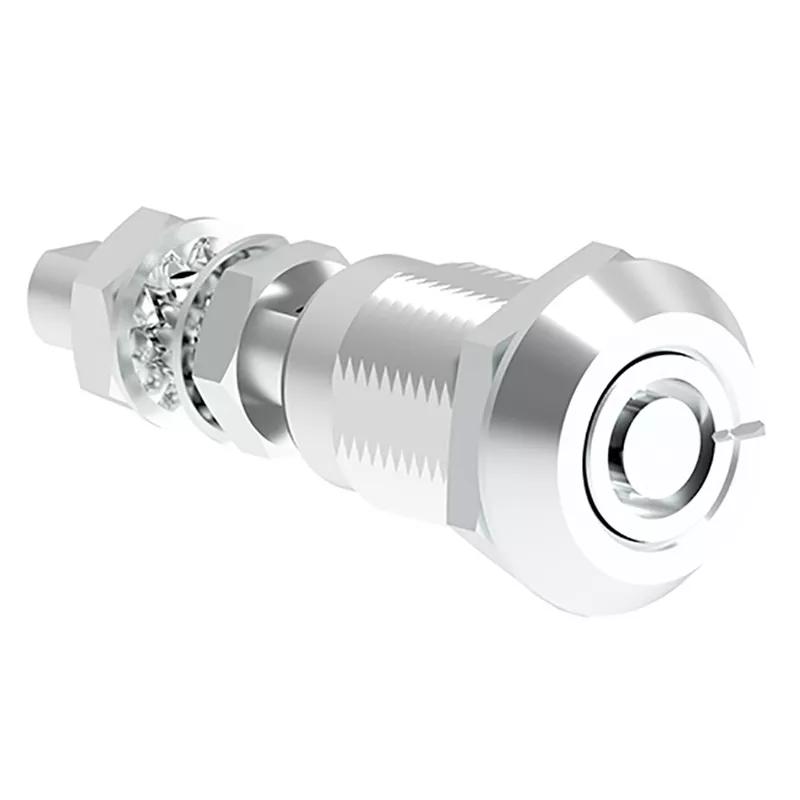

SR40 - Adjustable Compression Latches and Locks
Showing 1-10 of 22
Per page:1-10 of 22

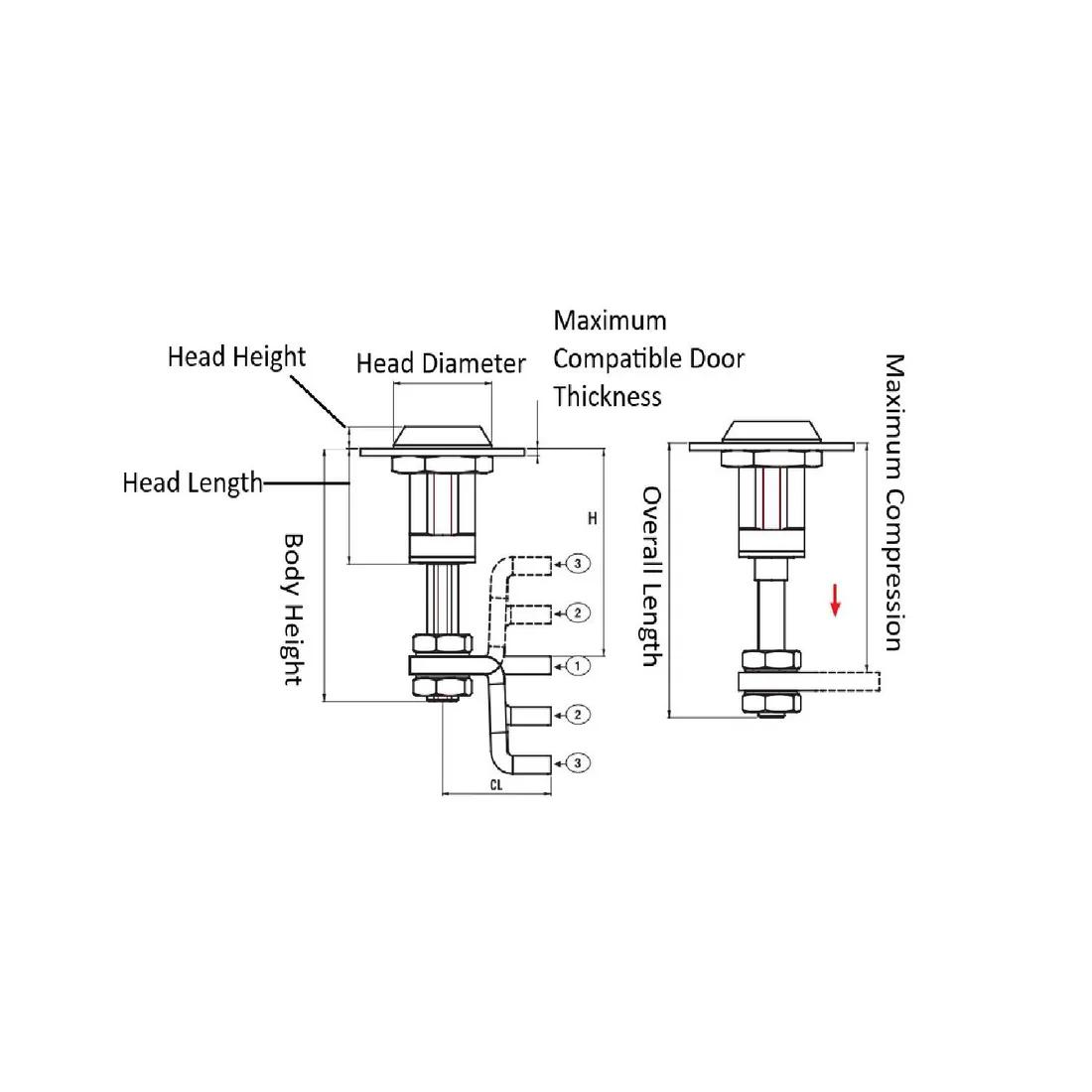

Item Code | Cam Material | Color | Overall Length | Head Diameter | Head Height | Maximum Compression | Finish | Key Type | Head Style | Latch Style | Mounting Orientation | Housing Material | Handle Type | Mounting Hole Width | Maximum Compatible Door Thickness | Washer Material | Coating | Mounting Hole Length | Driver Material | Minimum Grip | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0404129400001 | Steel | Black | 76.0 mm | 30.0 mm | 6.0 mm | 6.0 mm | Powder-Coated | Wing Knob Key | Wing Knob | Compression Latch | Right-Handed | Zinc Alloy | Wing Knob Handle | 19.2 mm | 18.0 mm | Rubber | Powder-Coated | 22.2 mm | Zinc Alloy | - | |
0404119400001 | Steel | - | 76.0 mm | 30.0 mm | 6.0 mm | 6.0 mm | Chrome Plated | Wing Knob Key | Wing Knob | Compression Latch | Right-Handed | Zinc Alloy | Wing Knob Handle | 19.2 mm | 18.0 mm | Rubber | Chrome-Plated | 22.2 mm | Zinc Alloy | - | |
0404129400002 | Steel | Black | 76.0 mm | 30.0 mm | 6.0 mm | 6.0 mm | Powder-Coated | Wing Knob Key | Wing Knob | Compression Latch | Left-Handed | Zinc Alloy | Wing Knob Handle | 19.2 mm | 18.0 mm | Rubber | Powder-Coated | 22.2 mm | Zinc Alloy | - | |
0404119400002 | Steel | - | 76.0 mm | 30.0 mm | 6.0 mm | 6.0 mm | Chrome Plated | Wing Knob Key | Wing Knob | Compression Latch | Left-Handed | Zinc Alloy | Wing Knob Handle | 19.2 mm | 18.0 mm | Rubber | Chrome-Plated | 22.2 mm | Zinc Alloy | - | |
0404111300002 | Steel | - | 76.0 mm | 30.0 mm | 6.0 mm | 6.0 mm | Chrome Plated | 3.0 mm Double Bit Key | 3.0 mm Double Bit | Compression Latch | Left-Handed | Zinc Alloy | Driver Tool Operated Handle | 19.2 mm | 18.0 mm | Rubber | Chrome-Plated | 22.2 mm | Zinc Alloy | - | |
0404116800002 | Steel | - | 76.0 mm | 30.0 mm | 6.0 mm | 6.0 mm | Chrome Plated | 8.0 mm Double Bit Key | 8.0 mm Hexagonal | Compression Latch | Left-Handed | Zinc Alloy | Driver Tool Operated Handle | 19.2 mm | 18.0 mm | Rubber | Chrome-Plated | 22.2 mm | Zinc Alloy | - | |
0404116800001 | Steel | - | 76.0 mm | 30.0 mm | 6.0 mm | 6.0 mm | Chrome Plated | 8.0 mm Double Bit Key | 8.0 mm Hexagonal | Compression Latch | Right-Handed | Zinc Alloy | Driver Tool Operated Handle | 19.2 mm | 18.0 mm | Rubber | Chrome-Plated | 22.2 mm | Zinc Alloy | - | |
0404122700002 | Steel | Black | 76.0 mm | 30.0 mm | 6.0 mm | 6.0 mm | Powder-Coated | 7.0 mm Square Key | 7.0 mm Square | Compression Latch | Left-Handed | Zinc Alloy | Driver Tool Operated Handle | 19.2 mm | 18.0 mm | Rubber | Powder-Coated | 22.2 mm | Zinc Alloy | - | |
0404121300001 | Steel | Black | 76.0 mm | 30.0 mm | 6.0 mm | 6.0 mm | Powder-Coated | 3.0 mm Double Bit Key | 3.0 mm Double Bit | Compression Latch | Right-Handed | Zinc Alloy | Driver Tool Operated Handle | 19.2 mm | 18.0 mm | Rubber | Powder-Coated | 22.2 mm | Zinc Alloy | - |
Per page:
1-10 of 22
1–5 of 22 variants
Per page:
0404129400001
Cam Material
Steel
Color
Black
Overall Length
76.0 mm
Head Diameter
30.0 mm
0404119400001
Cam Material
Steel
Overall Length
76.0 mm
Head Diameter
30.0 mm
Head Height
6.0 mm
0404129400002
Cam Material
Steel
Color
Black
Overall Length
76.0 mm
Head Diameter
30.0 mm
0404119400002
Cam Material
Steel
Overall Length
76.0 mm
Head Diameter
30.0 mm
Head Height
6.0 mm
Per page:
1–5 of 23
