SR377 - Compression Latch - Adjustable Grip
Showing 1-8 of 8
Per page:1-8 of 8

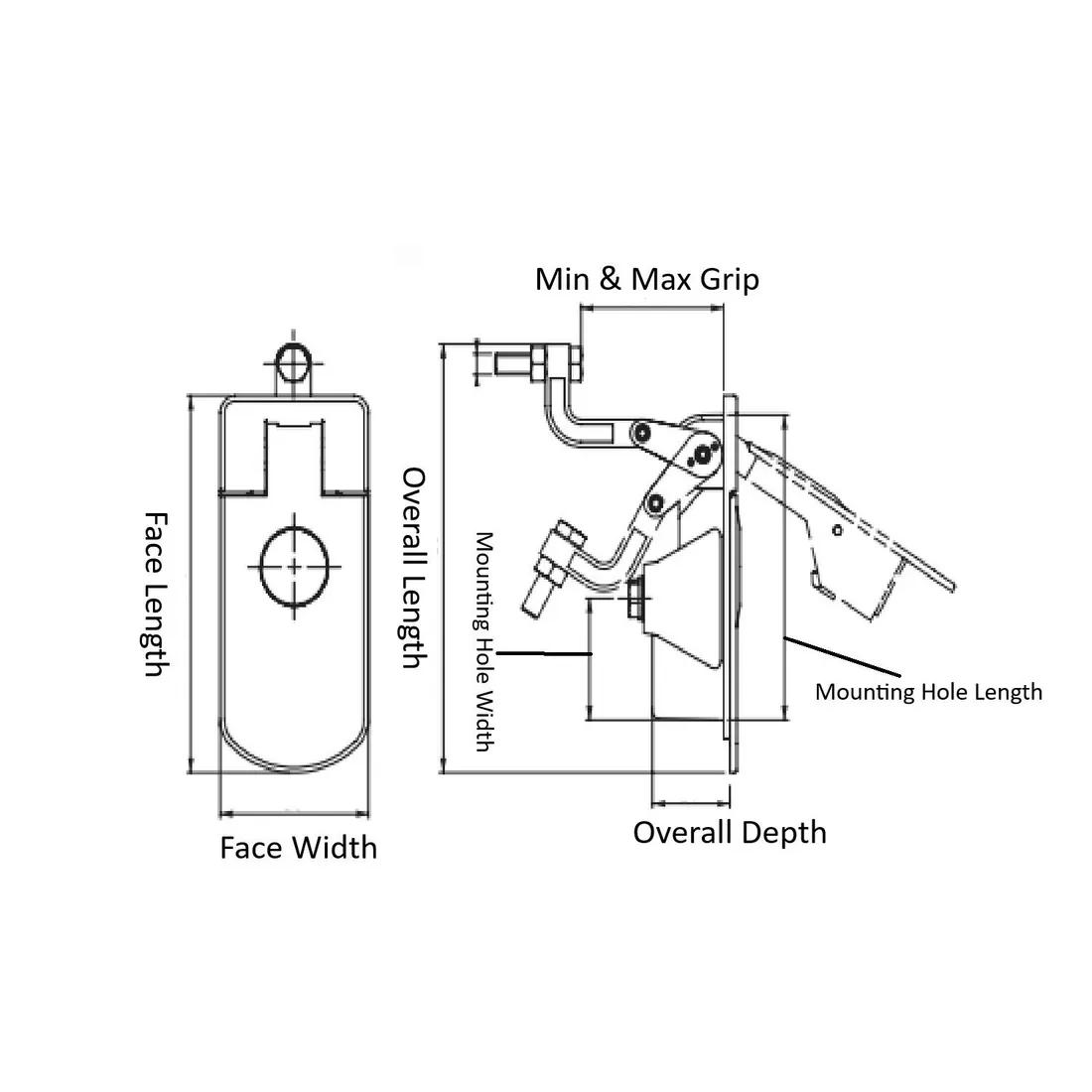

Item Code | Bracket Material | Screw Thread Size | Face Width | Overall Length | Handle Material | Overall Depth | Maximum Panel Thickness | Coating | Finish | Key Type | Latch Material | Mounting Hole Length | Color | Lock Type | Face Length | Mounting Orientation | Minimum Grip | Housing Material | Mounting Hole Width | Dust Cap Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3771203 | Steel | M6 | 50.0 mm | 125.0 mm | Zinc Alloy | 26.0 mm | 2.0 mm | Powder-Coated | Black Powder-Coated | Keyed Alike | Die Cast Zinc Alloy | 89.5 mm | Black | Keyed Alike | 110.0 mm | Universal | 36.0 mm | Zinc Alloy | 35.0 mm | Stainless Steel | |
3772203 | Steel | M6 | 50.0 mm | 125.0 mm | Zinc Alloy | 26.0 mm | 2.0 mm | Powder-Coated | Black Powder-Coated | Keyed Alike | Die Cast Zinc Alloy | 89.5 mm | Black | Keyed Alike | 110.0 mm | Universal | 51.0 mm | Zinc Alloy | 35.0 mm | Stainless Steel | |
3771207 | Steel | M6 | 50.0 mm | 125.0 mm | Zinc Alloy | 26.0 mm | 2.0 mm | Powder-Coated | Black Powder-Coated | Keyed CH751 | Die Cast Zinc Alloy | 89.5 mm | Black | - | 110.0 mm | Universal | 36.0 mm | Zinc Alloy | 35.0 mm | Stainless Steel | |
3771232 | Steel | M6 | 50.0 mm | 125.0 mm | Zinc Alloy | 26.0 mm | 2.0 mm | Powder-Coated | Black Powder-Coated | Keyed To Differ | Die Cast Zinc Alloy | 89.5 mm | Black | Keyed to Differ | 110.0 mm | Universal | 36.0 mm | Zinc Alloy | 35.0 mm | Stainless Steel | |
3772200 | Steel | M6 | 50.0 mm | 125.0 mm | Zinc Alloy | 26.0 mm | 2.0 mm | Powder-Coated | Black Powder-Coated | No Key | Die Cast Zinc Alloy | 89.5 mm | Black | - | 110.0 mm | Universal | 51.0 mm | Zinc Alloy | 35.0 mm | Stainless Steel | |
3772207 | Steel | M6 | 50.0 mm | 125.0 mm | Zinc Alloy | 26.0 mm | 2.0 mm | Powder-Coated | Black Powder-Coated | Keyed CH751 | Die Cast Zinc Alloy | 89.5 mm | Black | - | 110.0 mm | Universal | 51.0 mm | Zinc Alloy | 35.0 mm | Stainless Steel | |
3771200 | Steel | M6 | 50.0 mm | 125.0 mm | Zinc Alloy | 26.0 mm | 2.0 mm | Powder-Coated | Black Powder-Coated | No Key | Die Cast Zinc Alloy | 89.5 mm | Black | - | 110.0 mm | Universal | 36.0 mm | Zinc Alloy | 35.0 mm | Stainless Steel | |
3772232 | Steel | M6 | 50.0 mm | 125.0 mm | Zinc Alloy | 26.0 mm | 2.0 mm | Powder-Coated | Black Powder-Coated | Keyed To Differ | Die Cast Zinc Alloy | 89.5 mm | Black | Keyed to Differ | 110.0 mm | Universal | 51.0 mm | Zinc Alloy | 35.0 mm | Stainless Steel |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
3771203
Bracket Material
Steel
Screw Thread Size
M6
Face Width
50.0 mm
Overall Length
125.0 mm
3772203
Bracket Material
Steel
Screw Thread Size
M6
Face Width
50.0 mm
Overall Length
125.0 mm
3771207
Bracket Material
Steel
Screw Thread Size
M6
Face Width
50.0 mm
Overall Length
125.0 mm
3771232
Bracket Material
Steel
Screw Thread Size
M6
Face Width
50.0 mm
Overall Length
125.0 mm
Per page:
1–5 of 9
