SR340 - Draw Latches
Showing 1-5 of 5
Per page:1-5 of 5

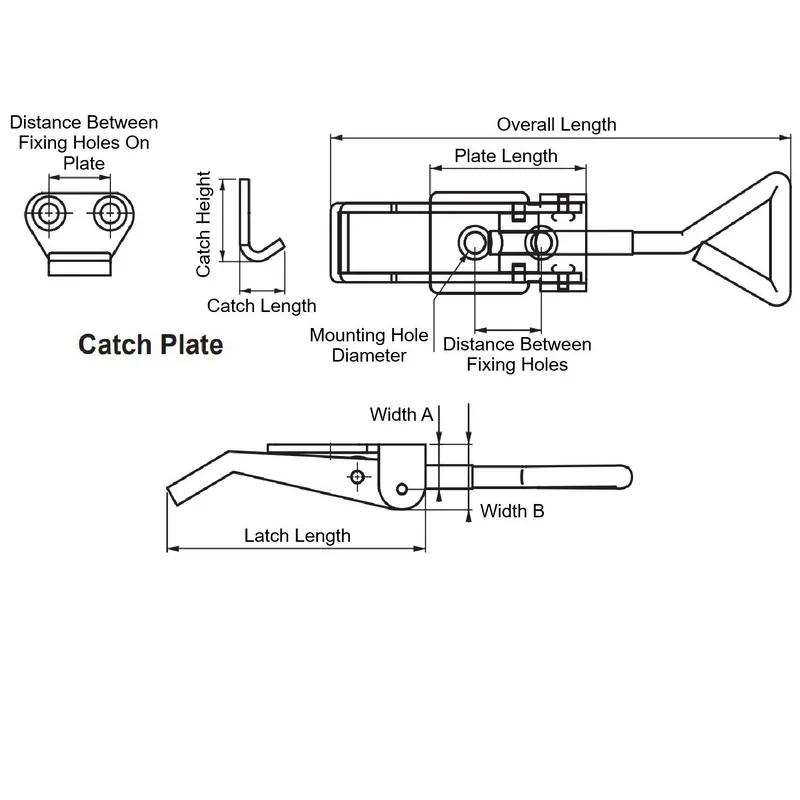

Item Code | Overall Length | Material | Catch Length | Latch Length | Mounting Hole Diameter | Coating | Overall Width | Distance Between Fixing Holes | Finish | Overall Height | Catch Height (Seed) | Mount Type | Adjustability | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
270263 | 103.0 mm | Steel | - | - | - | - | - | - | - | - | - | - | - | |
34000135 | 140.0 - 160.0 mm | Steel | 18.5 mm | 140.0 mm, 160.0 mm | 5.3 mm | Zinc-Plated | 32.0 mm | 22.0 mm | Zinc-Plated | 27.0 mm | 29.0 mm | Mounting Holes | Adjustable | |
34000131 | 77.0 - 88.0 mm | Steel | 9.0 mm | 77.0 mm, 88.0 mm | 4.3 mm | Zinc-Plated | 16.0 mm | 14.0 mm | Zinc-Plated | 15.0 mm | 19.2 mm | Mounting Holes | - | |
34000133 | 94.0 - 125.0 mm | Steel | 12.5 mm | 94.0 mm, 125.0 mm | 5.3 mm | Zinc-Plated | 20.0 mm | 17.0 mm | Zinc-Plated | 16.0 mm | 22.0 mm | Mounting Holes | Adjustable | |
270063 | 49.0 mm | Steel | - | - | - | - | - | - | - | - | - | - | - |
Per page:
1-5 of 5
1–5 of 5 variants
Per page:
270263
Overall Length
103.0 mm
Material
Steel
34000135
Catch Length
18.5 mm
Material
Steel
Overall Length
140.0 - 160.0 mm
Latch Length
140.0 mm, 160.0 mm
34000131
Catch Length
9.0 mm
Material
Steel
Overall Length
77.0 - 88.0 mm
Latch Length
77.0 mm, 88.0 mm
34000133
Catch Length
12.5 mm
Material
Steel
Overall Length
94.0 - 125.0 mm
Latch Length
94.0 mm, 125.0 mm
Per page:
1–5 of 6
