SR340 - Compression Latches - Wing Knob Fixed Locks
Showing 1-4 of 4
Per page:1-4 of 4

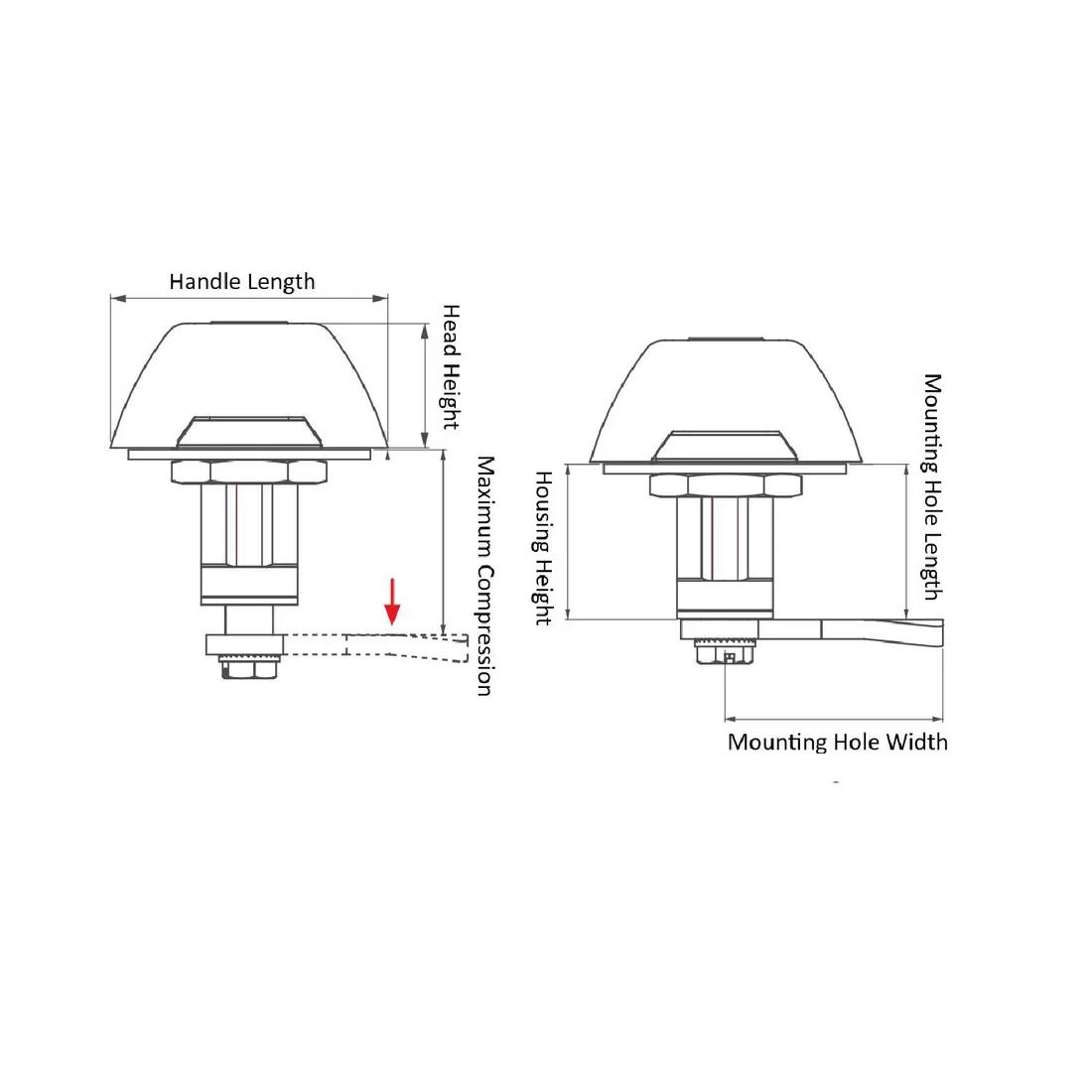

Item Code | Cam Material | Color | Housing Height | Knob Material | Maximum Panel Thickness | Head Height | Maximum Compression | Gasket Material | Finish | Key Type | Mounting Hole Length | Mounting Orientation | Housing Material | Handle Type | Mounting Hole Width | Handle Length | Latch Style | Coating | Seal Material | Latch Material | Handle Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3403120700 | Steel | Black | 32.0 mm | Zinc Alloy | 18.0 mm | 25.0 mm | 6.0 mm | Rubber | Black Powder-Coated | Keyed CH751 | 22.0 mm | Universal | Zinc Alloy | Wing Knob Handle | 19.2 mm | 56.0 mm | Fixed Compression | - | - | - | - | |
3403110700 | Steel | Silver | 32.0 mm | Zinc Alloy | 18.0 mm | 25.0 mm | 6.0 mm | Rubber | Chrome Plated | Keyed CH751 | 22.0 mm | Universal | Zinc Alloy | Wing Knob Handle | 19.2 mm | 56.0 mm | Fixed Compression | - | - | - | - | |
3403110000 | Steel | Silver | 32.0 mm | Zinc Alloy | 18.0 mm | 25.0 mm | 6.0 mm | - | Chrome Plated | No Key | 22.2 mm | Universal | Zinc Alloy | Wing Knob Handle | 19.2 mm | 56.0 mm | - | Chrome-Plated | Rubber | Zinc Alloy | 25.0 mm | |
3403120000 | Steel | Black | 32.0 mm | Zinc Alloy | 18.0 mm | 25.0 mm | 6.0 mm | - | Black Powder-Coated | No Key | 22.2 mm | Universal | Zinc Alloy | Wing Knob Handle | 19.2 mm | 56.0 mm | - | Powder-Coated | Rubber | Zinc Alloy | 25.0 mm |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
3403120700
Cam Material
Steel
Color
Black
Housing Height
32.0 mm
Knob Material
Zinc Alloy
3403110700
Cam Material
Steel
Color
Silver
Housing Height
32.0 mm
Knob Material
Zinc Alloy
3403110000
Cam Material
Steel
Color
Silver
Housing Height
32.0 mm
Knob Material
Zinc Alloy
3403120000
Cam Material
Steel
Color
Black
Housing Height
32.0 mm
Knob Material
Zinc Alloy
