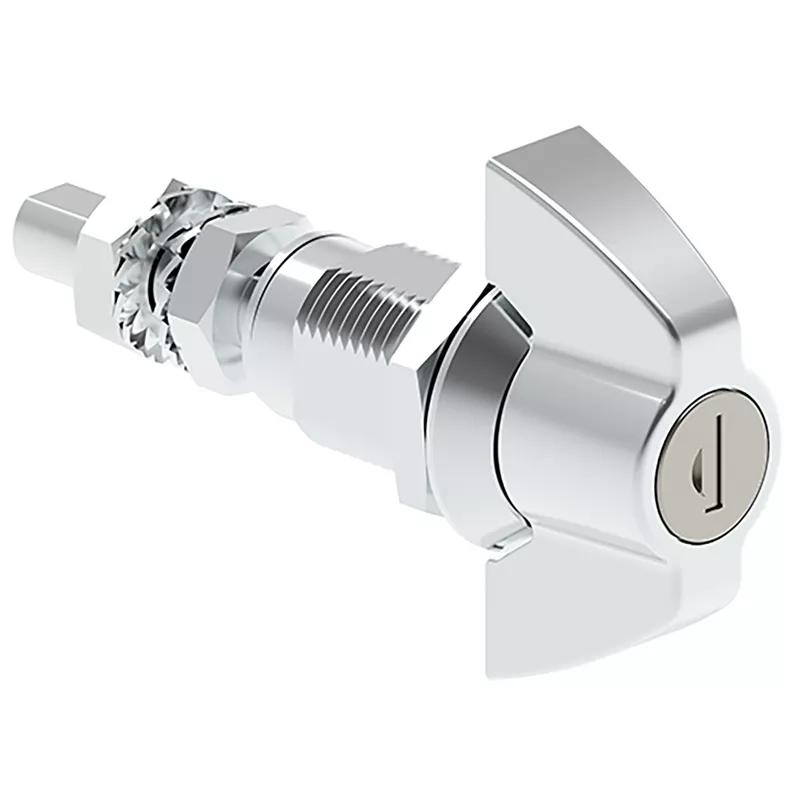

SR340 - Compression Latches - Wing Knob Adjustable Locks
Showing 1-4 of 4
Per page:1-4 of 4

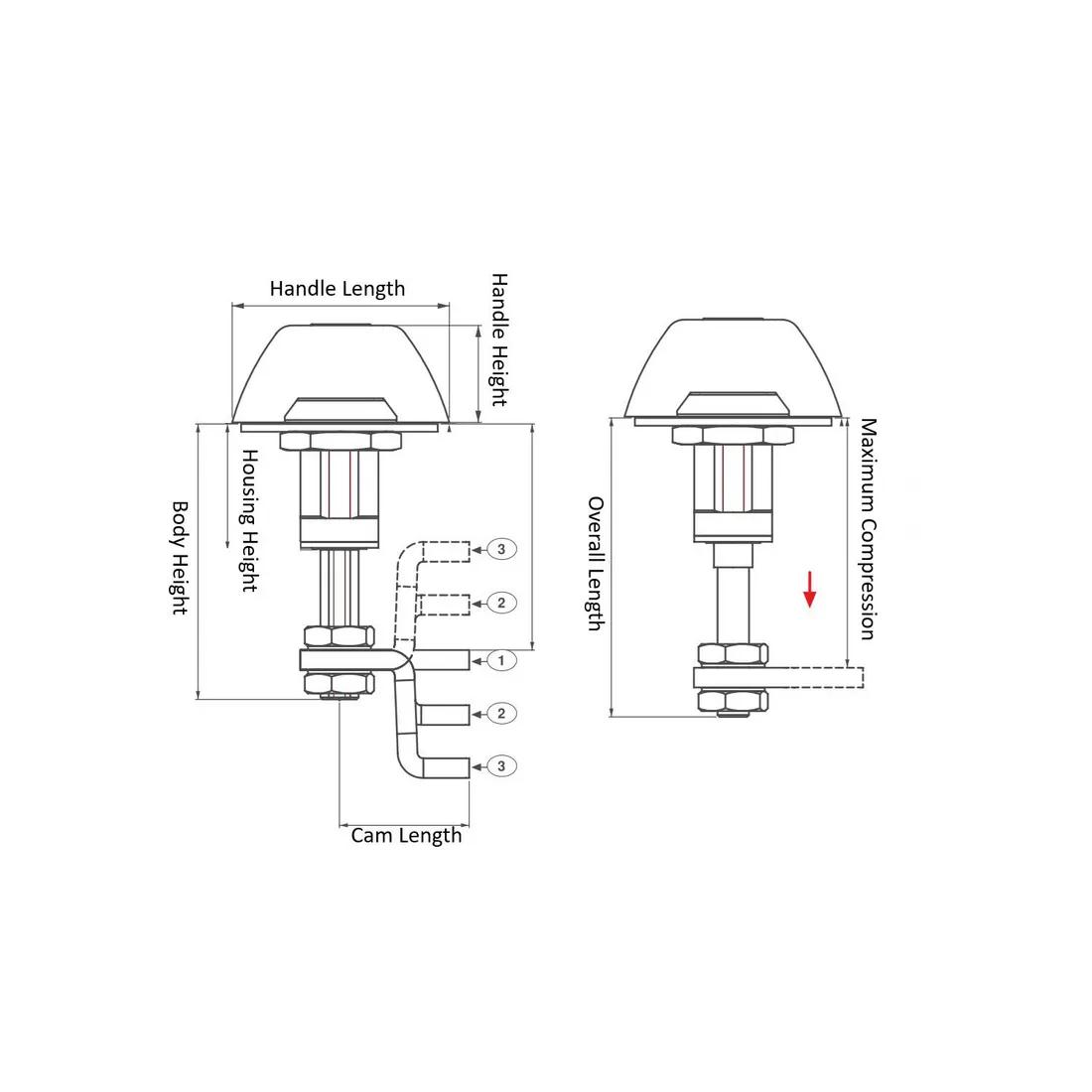

Item Code | Cam Material | Cam Length | Housing Height | Knob Material | Overall Length | Head Height | Maximum Compression | Gasket Material | Coating | Finish | Key Type | Mounting Orientation | Housing Material | Handle Type | Mounting Hole Width | Handle Length | Latch Style | Handle Height | Body Height | Mounting Hole Length | Color | Maximum Panel Thickness | Seal Material | Latch Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3404110700 | Steel | 33.0 mm | 32.0 mm | Zinc Alloy | 95.0 mm | 25.0 mm | 6.0 mm | Rubber | Chrome-Plated | Chrome Plated | Keyed CH751 | Universal | Zinc Alloy | Wing Knob, Key Operated Handle | 19.2 mm | 56.0 mm | Compression Latch | 25.0 mm | 70.0 mm | 22.2 mm | - | - | - | - | |
3404110000 | Steel | - | 32.0 mm | Zinc Alloy | 95.0 mm | 25.0 mm | 6.0 mm | - | Chrome-Plated | Chrome Plated | No Key | Universal | Zinc Alloy | Wing Knob Handle | 19.2 mm | 56.0 mm | - | 25.0 mm | 70.0 mm | 22.2 mm | Silver | 18.0 mm | Rubber | Zinc Alloy | |
3404120000 | Steel | - | 32.0 mm | Zinc Alloy | 95.0 mm | 25.0 mm | 6.0 mm | - | Powder-Coated | Black Powder-Coated | No Key | Universal | Zinc Alloy | Wing Knob Handle | 19.2 mm | 56.0 mm | - | 25.0 mm | 70.0 mm | 22.2 mm | Black | 18.0 mm | Rubber | Zinc Alloy | |
3404120700 | Steel | 33.0 mm | 32.0 mm | Zinc Alloy | 95.0 mm | 25.0 mm | 6.0 mm | Rubber | Powder-Coated | Powder-Coated | Keyed CH751 | Universal | Zinc Alloy | Wing Knob, Key Operated Handle | 19.2 mm | 56.0 mm | Compression Latch | 25.0 mm | 70.0 mm | 22.2 mm | Black | - | - | - |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
3404110700
Cam Material
Steel
Cam Length
33.0 mm
Housing Height
32.0 mm
Knob Material
Zinc Alloy
3404110000
Cam Material
Steel
Color
Silver
Housing Height
32.0 mm
Knob Material
Zinc Alloy
3404120000
Cam Material
Steel
Color
Black
Housing Height
32.0 mm
Knob Material
Zinc Alloy
3404120700
Cam Material
Steel
Cam Length
33.0 mm
Color
Black
Housing Height
32.0 mm
