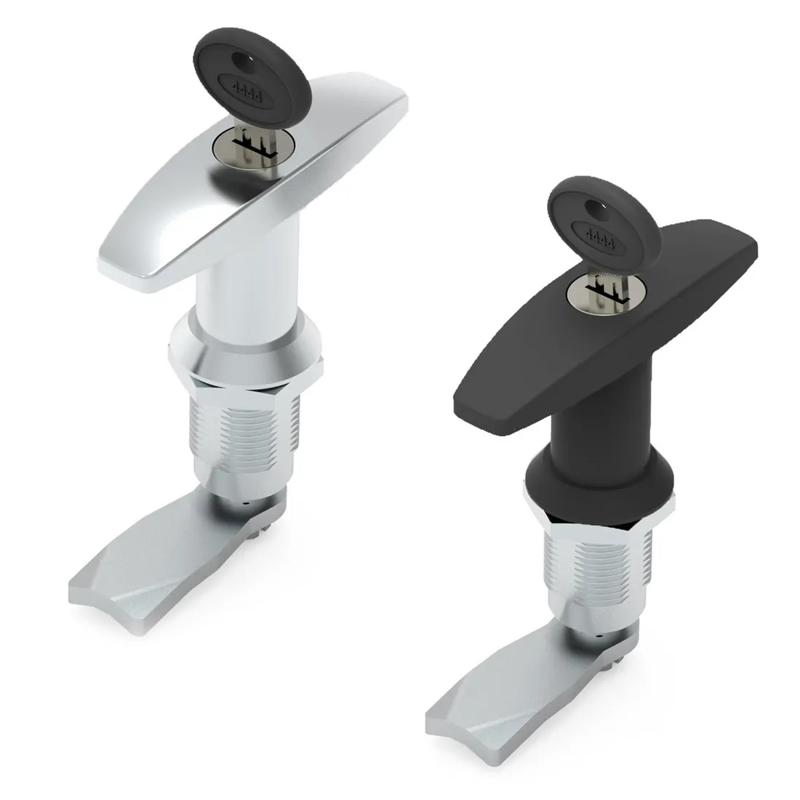

SR240 - Compression Latches - 'T' Handle Fixed Locks
Showing 1-4 of 4
Per page:1-4 of 4

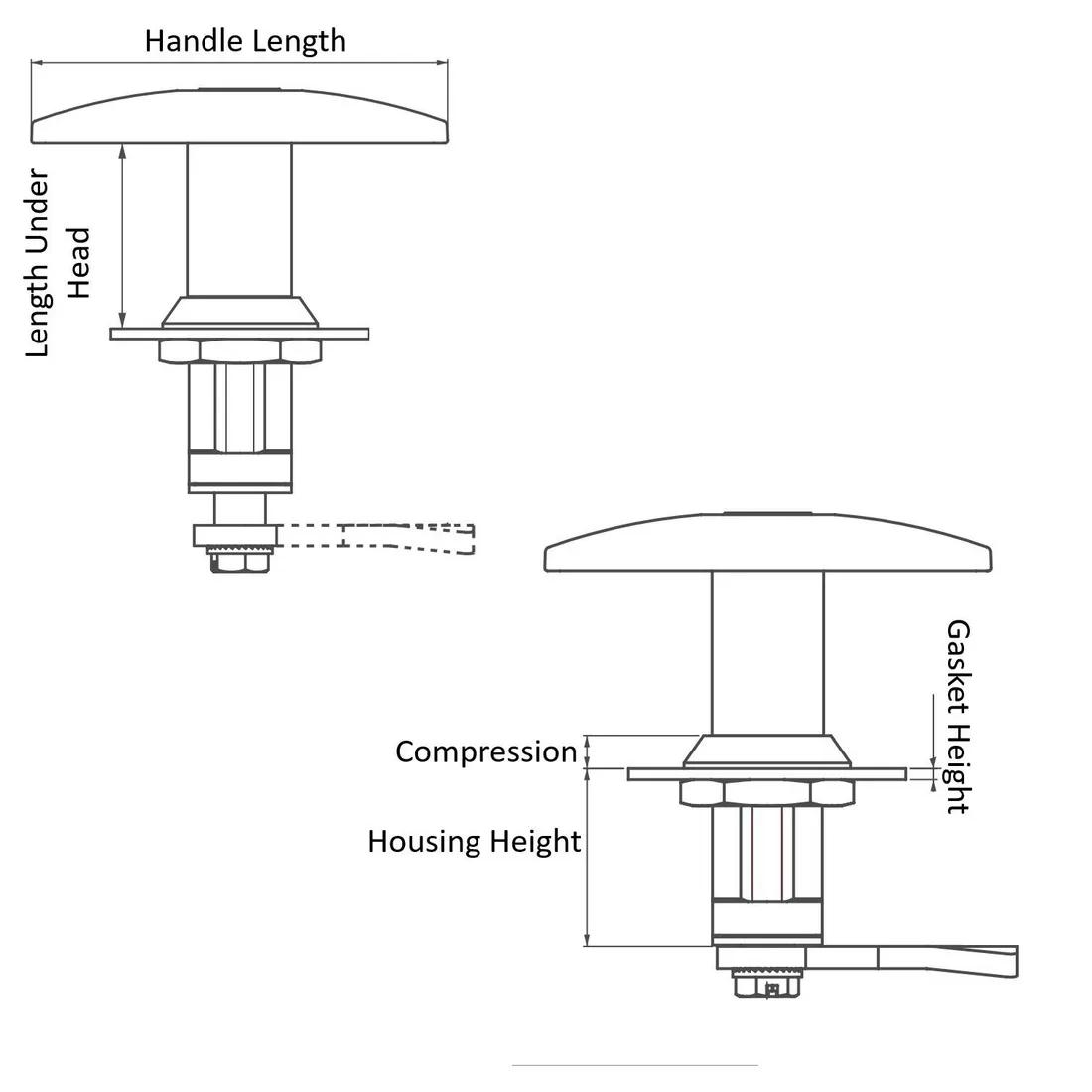

Item Code | Length Under Head | Housing Height | Housing Material | Handle Material | Gasket Material | Finish | Key Type | Mount Type | Handle Length | Latch Style | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
2403110000 | 36.0 mm | 32.0 mm | Zinc Alloy | Zinc Alloy | Rubber | Chrome Plated | No Key | Montaje con tornillo | 80.0 mm | Compression Latch | |
2403110700 | 36.0 mm | 32.0 mm | Zinc Alloy | Zinc Alloy | Rubber | Chrome Plated | Keyed CH751 | Montaje con tornillo | 80.0 mm | Compression Latch | |
2403120000 | 36.0 mm | 32.0 mm | Zinc Alloy | Zinc Alloy | Rubber | Black Powder-Coated | No Key | Montaje con tornillo | 80.0 mm | Compression Latch | |
2403120700 | 36.0 mm | 32.0 mm | Zinc Alloy | Zinc Alloy | Rubber | Black Powder-Coated | Keyed CH751 | Montaje con tornillo | 80.0 mm | Compression Latch |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
2403110000
Length Under Head
36.0 mm
Housing Height
32.0 mm
Housing Material
Zinc Alloy
Handle Material
Zinc Alloy
2403110700
Length Under Head
36.0 mm
Housing Height
32.0 mm
Housing Material
Zinc Alloy
Handle Material
Zinc Alloy
2403120000
Length Under Head
36.0 mm
Housing Height
32.0 mm
Housing Material
Zinc Alloy
Handle Material
Zinc Alloy
2403120700
Length Under Head
36.0 mm
Housing Height
32.0 mm
Housing Material
Zinc Alloy
Handle Material
Zinc Alloy
