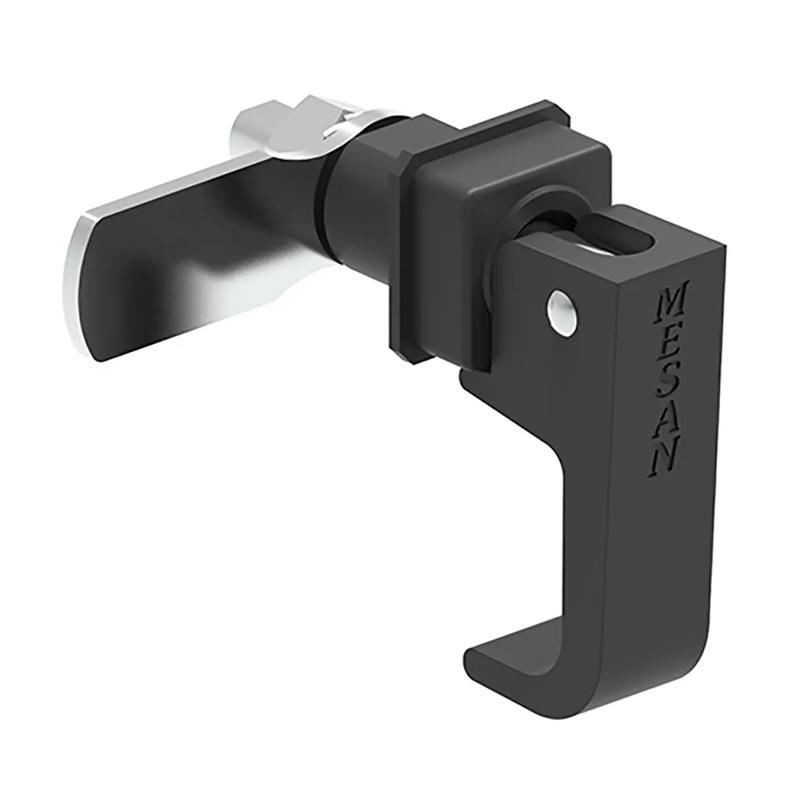

SR070 - Lift-and-Turn Latches - Compression Locks
Showing 1-1 of 1
Per page:1-1 of 1

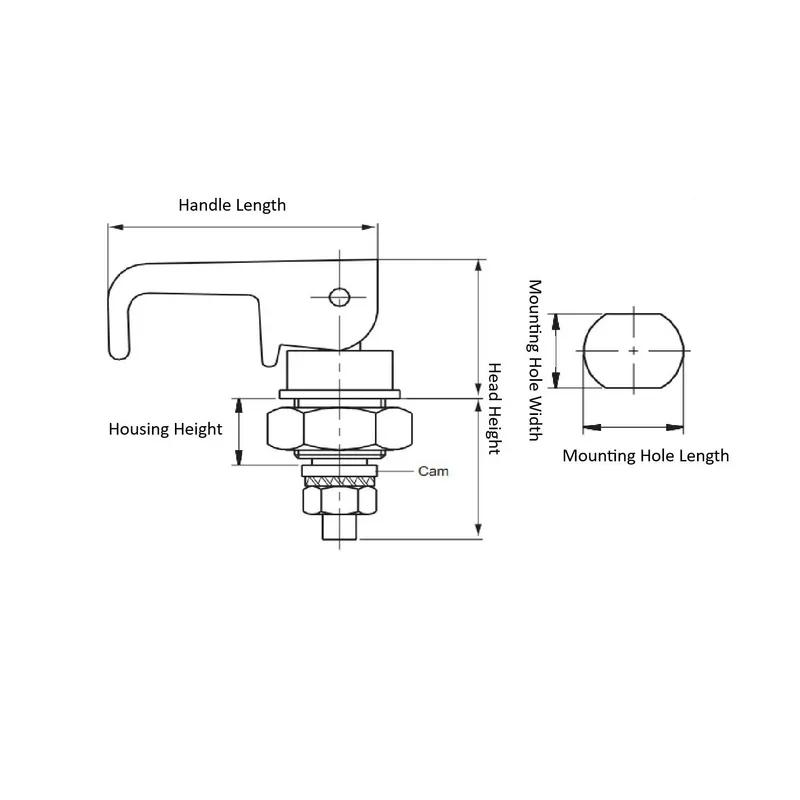

Item Code | Cam Material | Cam Length | Color | Housing Height | Head Height | Key Type | Overall Height | Latch Material | Handle Length | Mounting Hole Length | Mounting Orientation | Housing Material | Handle Type | Mounting Hole Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
070 | Steel | 45.0 mm | Black | 15.0 mm | 32.5 mm | No Key | 65.0 mm | Nylon | 54.0 mm | 18.2 mm | Universal | 30% Glass Fibre Nylon 6 | Lever Operated Handle | 15.2 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
070
Cam Material
Steel
Cam Length
45.0 mm
Color
Black
Housing Height
15.0 mm
