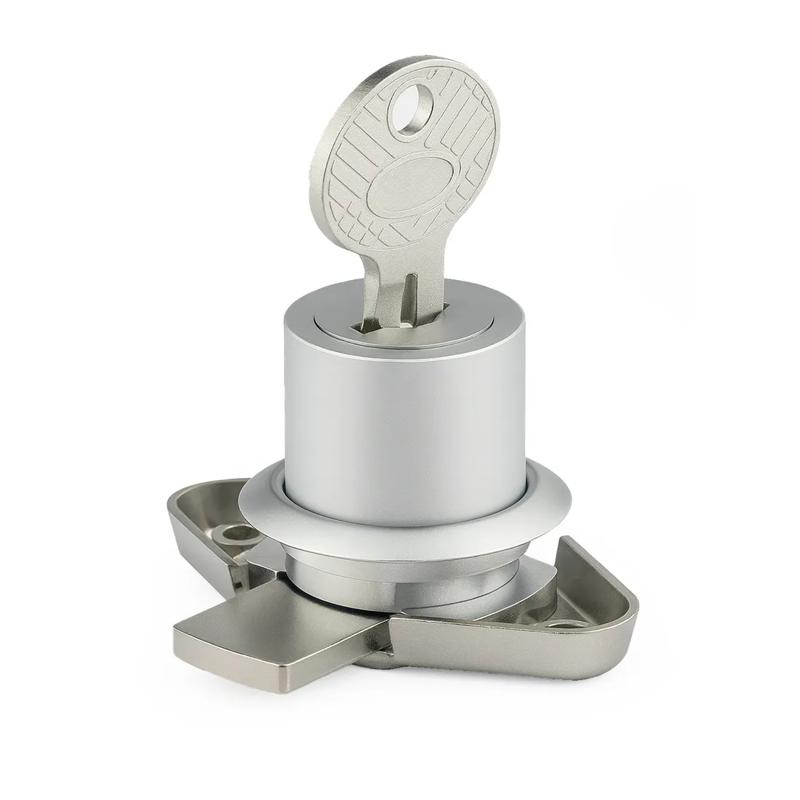

SR30 - Furniture Locks
Showing 1-2 of 2
Per page:1-2 of 2

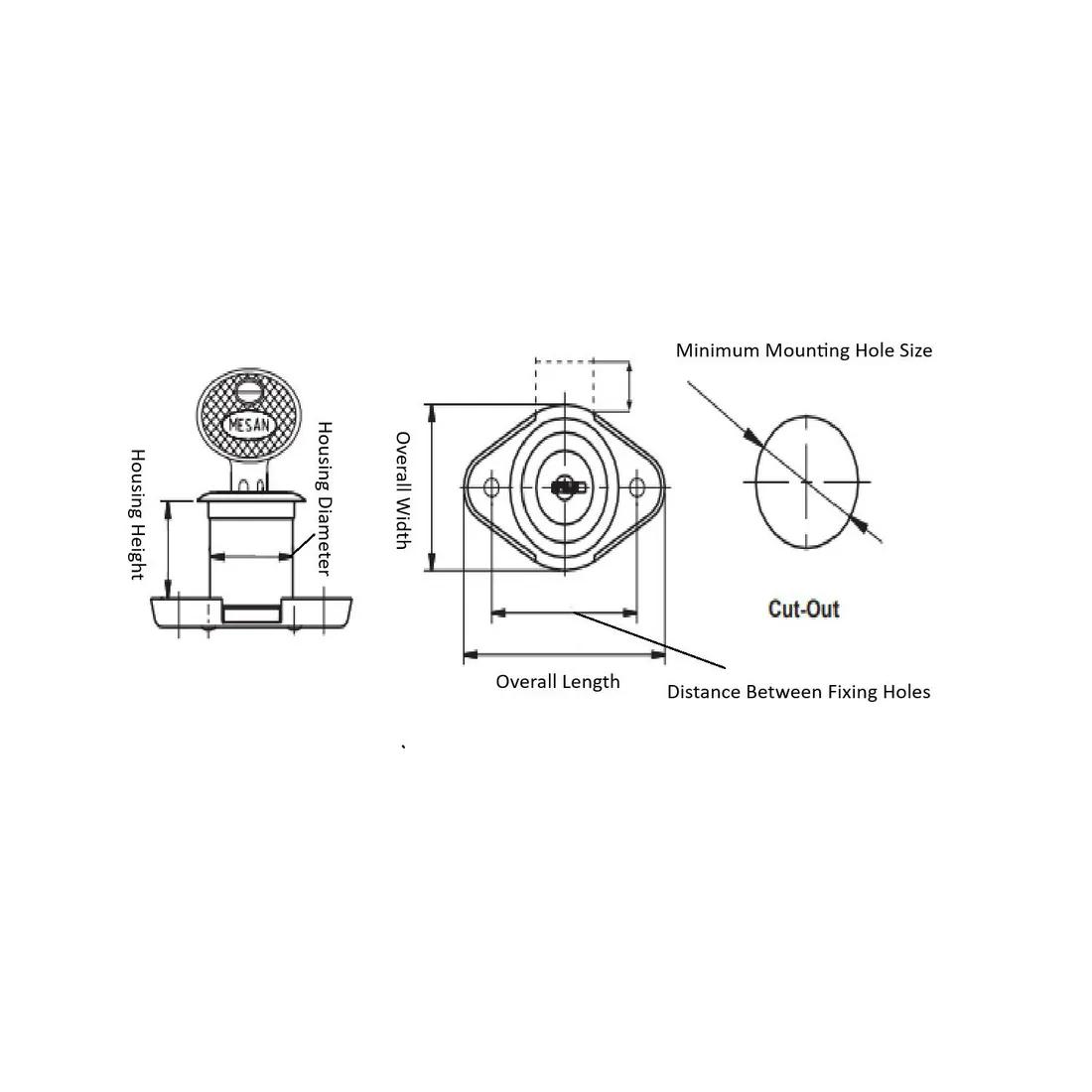

Item Code | Cam Material | Housing Diameter | Housing Height | Mounting Orientation | Overall Length | Strike Plate Material | Latch Material | Latch Style | Mounting Hole Length | Color | Lock Type | Minimum Mounting Hole Size | Overall Width | Distance Between Fixing Holes | Latch Type | Coating | Body Material | Key Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
03001 | Steel | 22.2 mm | 20.0 mm | Universal | 54.0 mm | Steel | Zinc Alloy | Furniture Latch | 22.5 mm | Silver | Keyed Alike | 22.5 mm | 34.5 mm | 39.0 mm | Key-Operated | Zinc-Plated | Zinc Alloy | Keyed Alike | |
03002 | Steel | 22.2 mm | 20.0 mm | Universal | 54.0 mm | Steel | Zinc Alloy | Furniture Latch | 22.5 mm | Silver | Keyed to Differ | 22.5 mm | 34.5 mm | 39.0 mm | Key-Operated | Zinc-Plated | Zinc Alloy | Keyed To Differ |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
03001
Cam Material
Steel
Housing Diameter
22.2 mm
Housing Height
20.0 mm
Mounting Orientation
Universal
03002
Cam Material
Steel
Housing Diameter
22.2 mm
Housing Height
20.0 mm
Mounting Orientation
Universal
