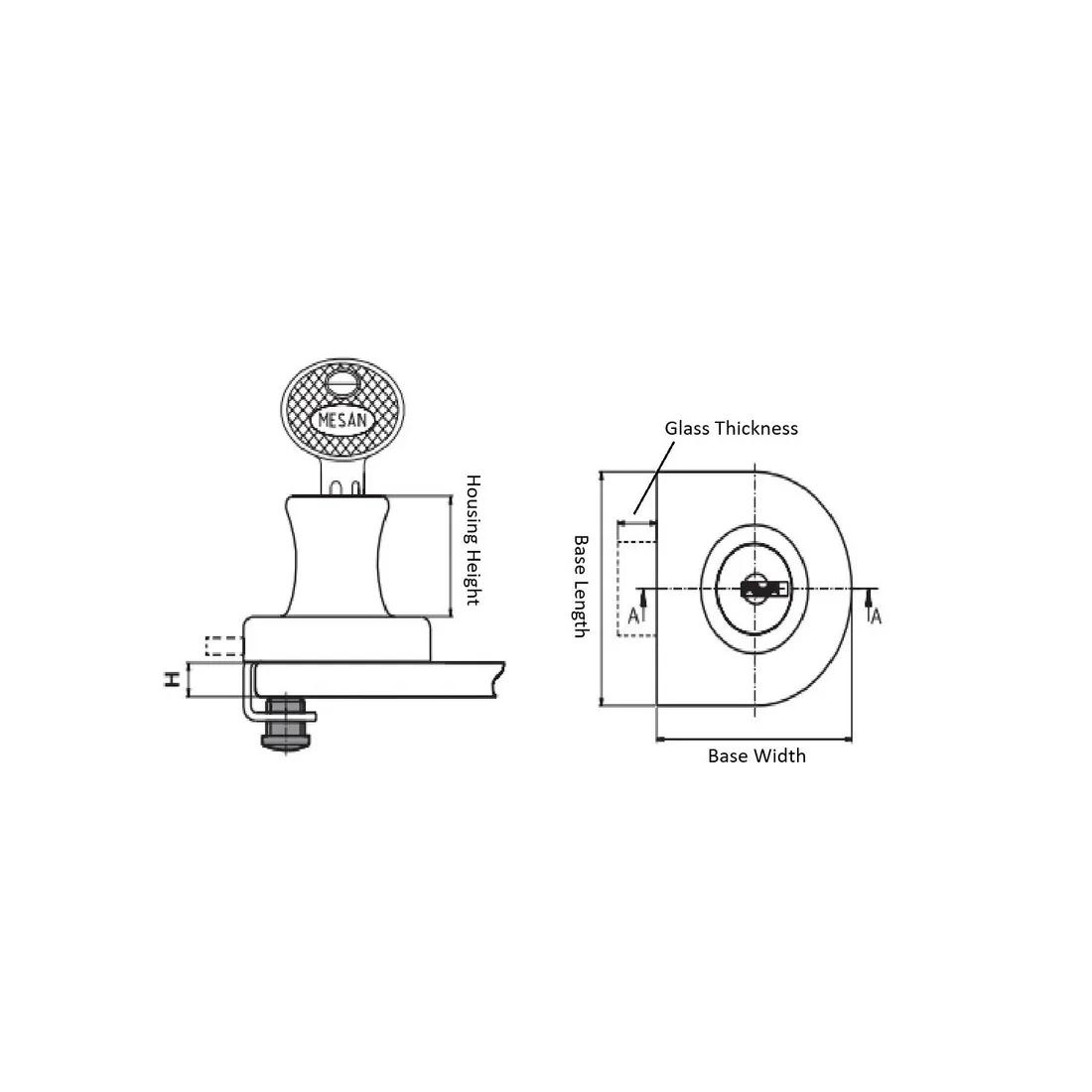

Item Code | Housing Height | Mounting Orientation | Maximum Glass Thickness | Base Width | Base Length | Slide Material | Latch Material | Latch Style | Minimum Glass Thickness | Color | Lock Type | Latch Type | Coating | Body Material | Key Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
02101 | 21.5 mm | Universal | 7.0 mm | 40.0 mm | 40.0 mm | Stainless Steel | Die Cast Zinc Alloy | Furniture Latch | 4.0 mm | Silver | Keyed Alike | Key-Operated | Chrome-Plated | Zinc Alloy | Keyed Alike | |
02102 | 21.5 mm | Universal | 7.0 mm | 40.0 mm | 40.0 mm | Stainless Steel | Die Cast Zinc Alloy | Furniture Latch | 4.0 mm | Silver | Keyed to Differ | Key-Operated | Chrome-Plated | Zinc Alloy | Keyed To Differ |
Housing Height
21.5 mm
Mounting Orientation
Universal
Maximum Glass Thickness
7.0 mm
Base Width
40.0 mm
Housing Height
21.5 mm
Mounting Orientation
Universal
Maximum Glass Thickness
7.0 mm
Base Width
40.0 mm
