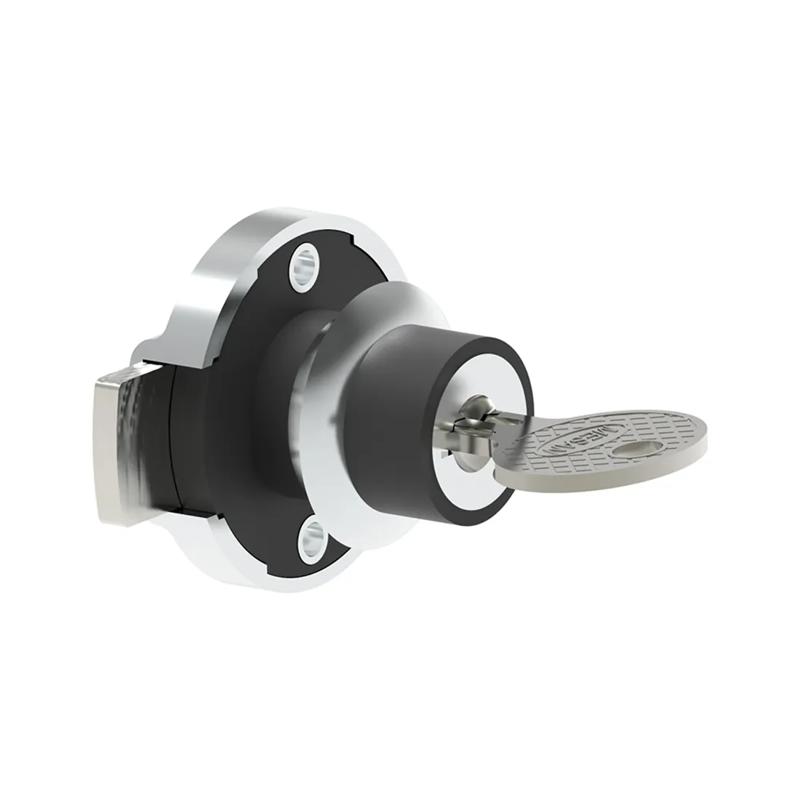

SR033 - Furniture Locks
Showing 1-1 of 1
Per page:1-1 of 1

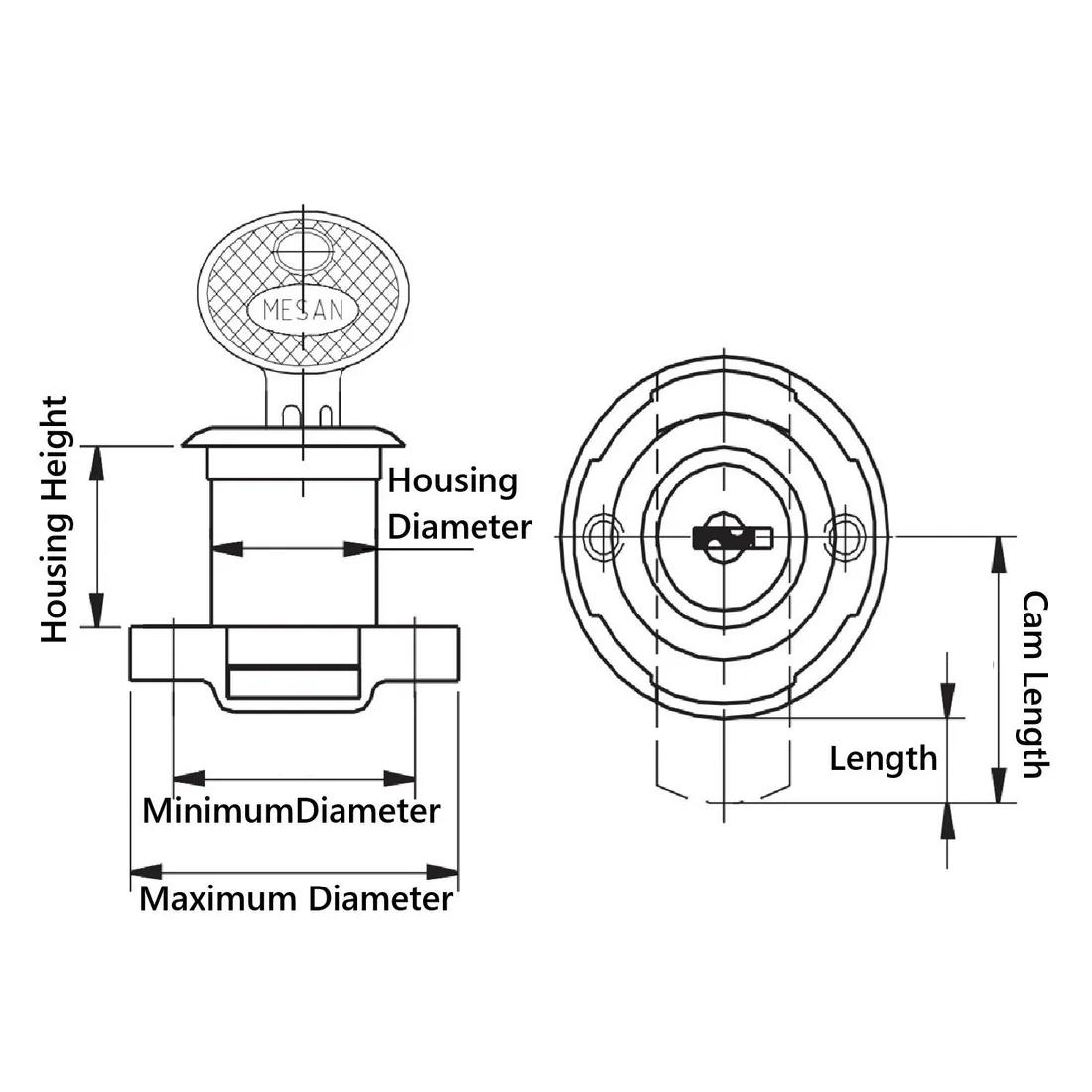

Item Code | Cam Material | Cutout Dimensions | Cam Length | Housing Diameter | Housing Height | Strike Plate Material | Latch Type | Locking Mechanism | Body Material | Key Type | Length | Latch Style | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
03301 | Steel | 19.5 mm | 26.0 mm | 19.0 mm | 20.0 mm | Zinc-Plated Steel | Key-Operated | Abierto mecánicamente con una lámina metálica delgada | 30% Glass Fibre Nylon 6 | Keyed Alike | 7.0 mm | Furniture Latch |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
03301
Cam Material
Steel
Cutout Dimensions
19.5 mm
Cam Length
26.0 mm
Housing Diameter
19.0 mm
