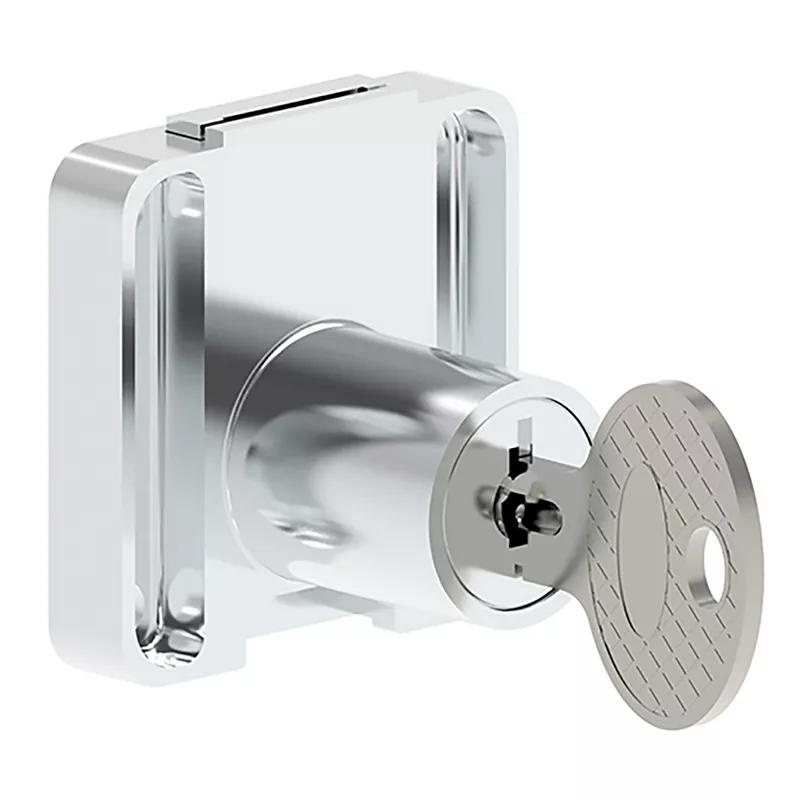

SR032 - Furniture Locks
Showing 1-2 of 2
Per page:1-2 of 2

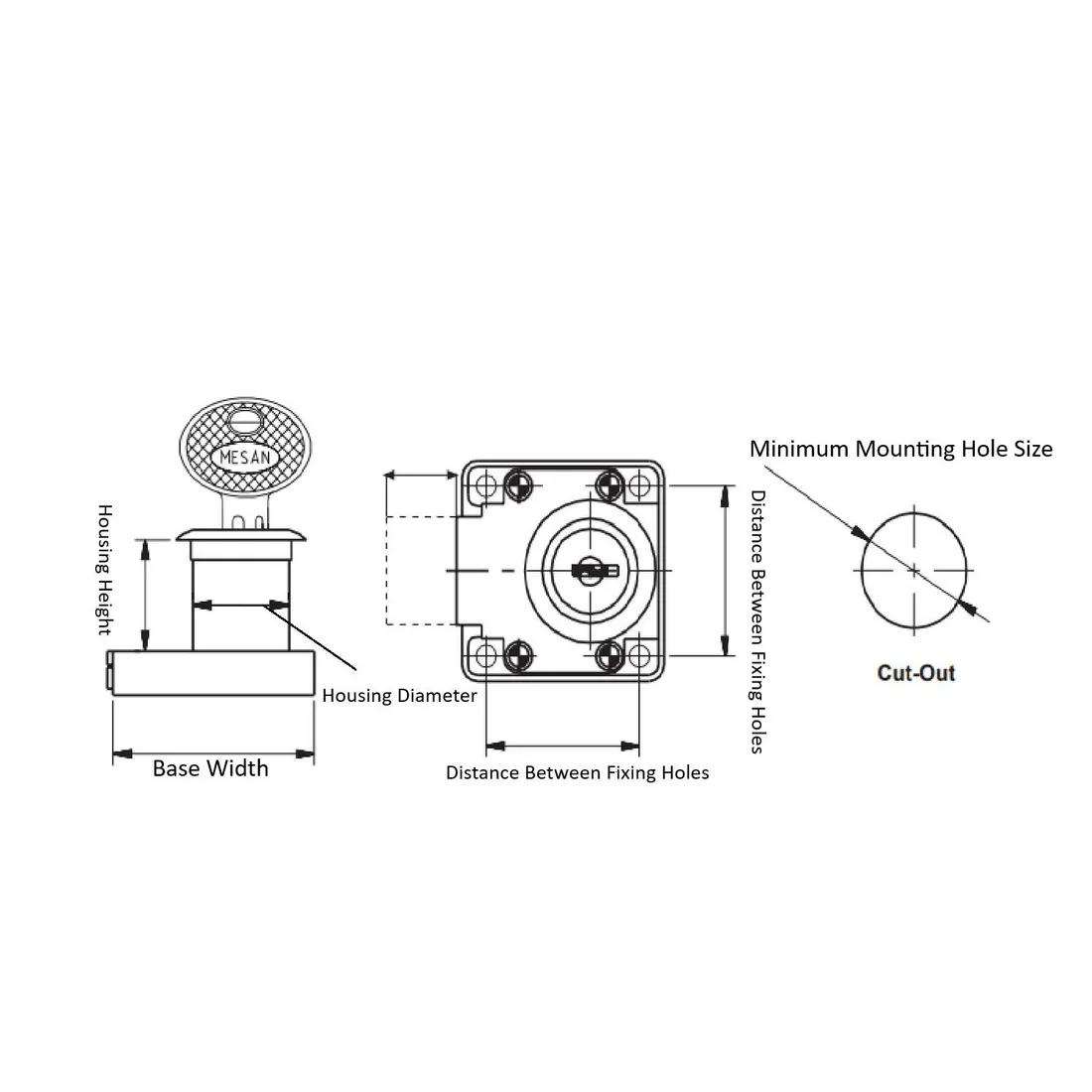

Item Code | Cam Material | Housing Diameter | Housing Height | Mounting Orientation | Strike Plate Material | Base Width | Latch Material | Latch Style | Mounting Hole Length | Color | Lock Type | Minimum Mounting Hole Size | Maximum Glass Thickness | Distance Between Fixing Holes | Latch Type | Coating | Body Material | Key Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
03201 | Steel | 19.0 mm | 20.0 mm | Universal | Steel | 40.0 mm | Zinc Alloy | Furniture Latch | 19.5 mm | Silver | Keyed Alike | 19.5 mm | 6.0 mm | 35.0 mm | Key-Operated | Zinc-Plated | Zinc Alloy | Keyed Alike | |
03202 | Steel | 19.0 mm | 20.0 mm | Universal | Steel | 40.0 mm | Zinc Alloy | Furniture Latch | 19.5 mm | Silver | Keyed to Differ | 19.5 mm | 6.0 mm | 35.0 mm | Key-Operated | Zinc-Plated | Zinc Alloy | Keyed To Differ |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
03201
Cam Material
Steel
Housing Diameter
19.0 mm
Housing Height
20.0 mm
Mounting Orientation
Universal
03202
Cam Material
Steel
Housing Diameter
19.0 mm
Housing Height
20.0 mm
Mounting Orientation
Universal
